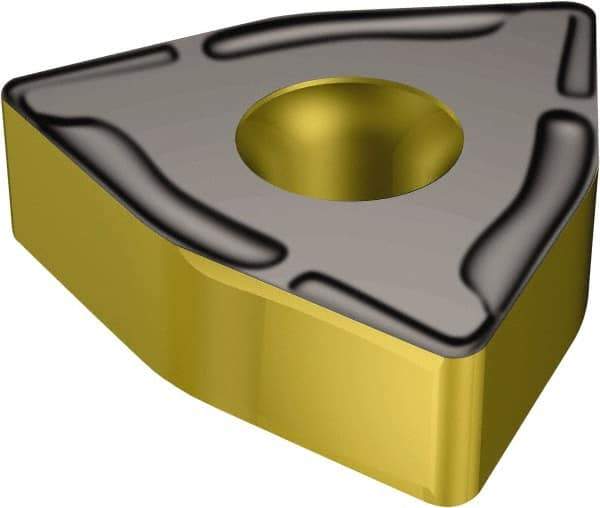

Sandvik Coromant - WNMX211251 MM Grade 4335 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, 80° Trigon, 1-1/4" Inscr Circle, 12.7mm Thick, 16mm Corner Radius
Item #: 32592917
Brand: Sandvik Coromant
Model #: 7081080
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WNMX |
| Insert Size | 211251 |
| Material | Carbide |
| Inscribed Circle (mm) | 31.75 |
| Inscribed Circle (Decimal Inch) | 1.2500 |
| Inscribed Circle (Inch) | 1-1/4 |
| Thickness (Decimal Inch) | 0.5000 |
| Thickness (mm) | 12.70 |
| Corner Radius (mm) | 16 |
| Corner Radius (Decimal Inch) | 0.6299 |
| Manufacturer's Grade | 4335 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | MM |
| ISO Number | WNMX 21 12 51-MM 4335 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 80 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Series | Not applicable |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Insert Holding Method | Screw |
| Shape | Trigon |
