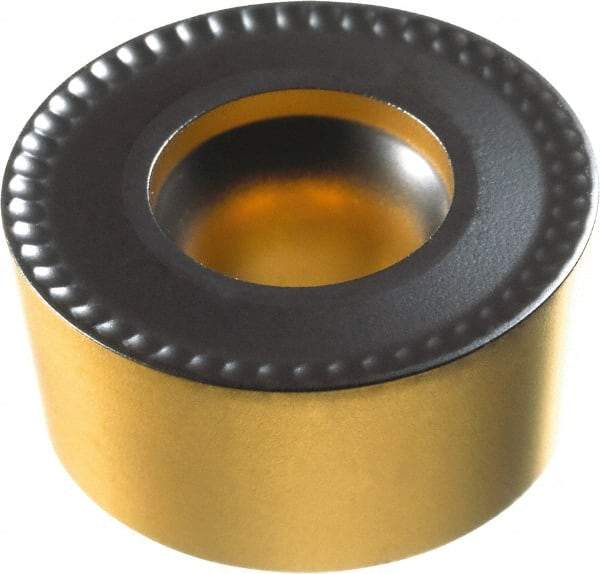

Sandvik Coromant - RCMT2507M0 M0 Grade 4335 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, Round, 25mm Inscr Circle, 5/16" Thick
Item #: 32592776
Brand: Sandvik Coromant
Model #: 7081105
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 2507M0 |
| Material | Carbide |
| Inscribed Circle (mm) | 25.00 |
| Inscribed Circle (Decimal Inch) | 0.9843 |
| Thickness (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.3125 |
| Thickness (mm) | 7.94 |
| Manufacturer's Grade | 4335 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | M0 |
| ISO Number | RCMT 25 07 M0 4335 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Insert Holding Method | Screw |
| Shape | Round |
