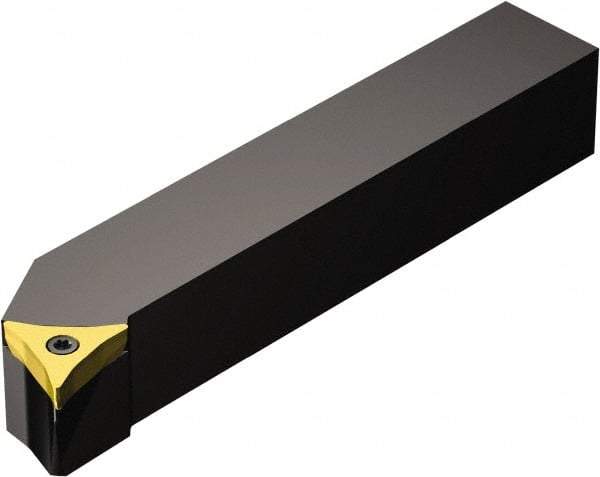

Sandvik Coromant - Right Hand Cut, 60° Lead Angle, 25.4mm Shank Height x 25.4mm Shank Width, Indexable Turning Toolholder - CP-A1108 Insert Compatibility, Series CoroTurn Prime
Item #: 32555450
Brand: Sandvik Coromant
Model #: 7182452
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Series | CoroTurn Prime |
| Lead Angle | 60 |
| Shank Width (mm) | 25.40 |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Insert Compatibility | CP-A1108 |
| Back of Bar to Cutting Edge (mm) | 152.40 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Center to Cutting Edge (Decimal Inch) | 1.2500 |
| Head Length (mm) | 50.80 |
| Head Length (Decimal Inch) | 2.0000 |
| Toolholder Material | Steel |
