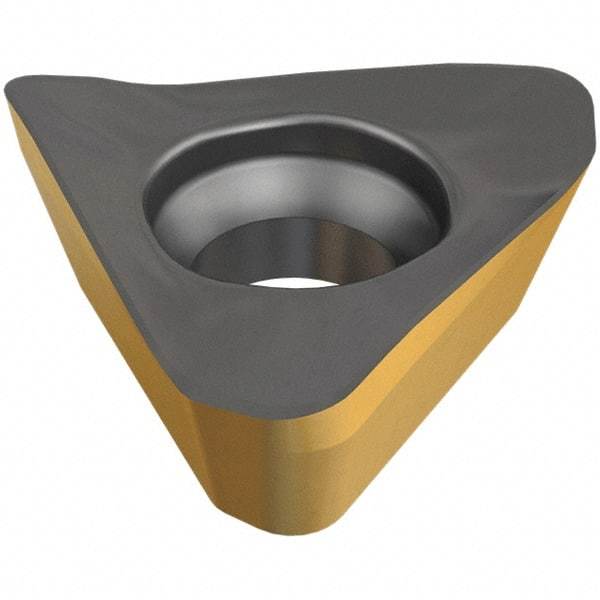

Iscar - HM390 TCCT0703 PCR Grade IC380 Carbide Milling Insert - TiCN/TiN Finish, 3.15mm Thick, 5.8mm Inscribed Circle, 0.5mm Corner Radius
Item #: 32462640
Brand: Iscar
Model #: 5607776
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM390 TCCT |
| Insert Size | 0703 |
| Material | Carbide |
| Manufacturer's Grade | IC380 |
| Coating | TiCN/TiN |
| Length (mm) | 7.80 |
| Length (Decimal Inch) | 0.3070 |
| Inscribed Circle (mm) | 5.80 |
| Inscribed Circle (Decimal Inch) | 0.2280 |
| Thickness (mm) | 3.15 |
| Thickness (Decimal Inch) | 0.1240 |
| Corner Radius (Decimal Inch) | 0.0200 |
| Corner Radius (mm) | 0.50 |
| Coating Process | PVD |
| Shape | Triangle |
| Chipbreaker | PCR |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | HM390 TCCT 0703PCR |
| ISO Number | HM390 TCCT 0703PCR |
| ANSI Number | HM390 TCCT 0703PCR |
