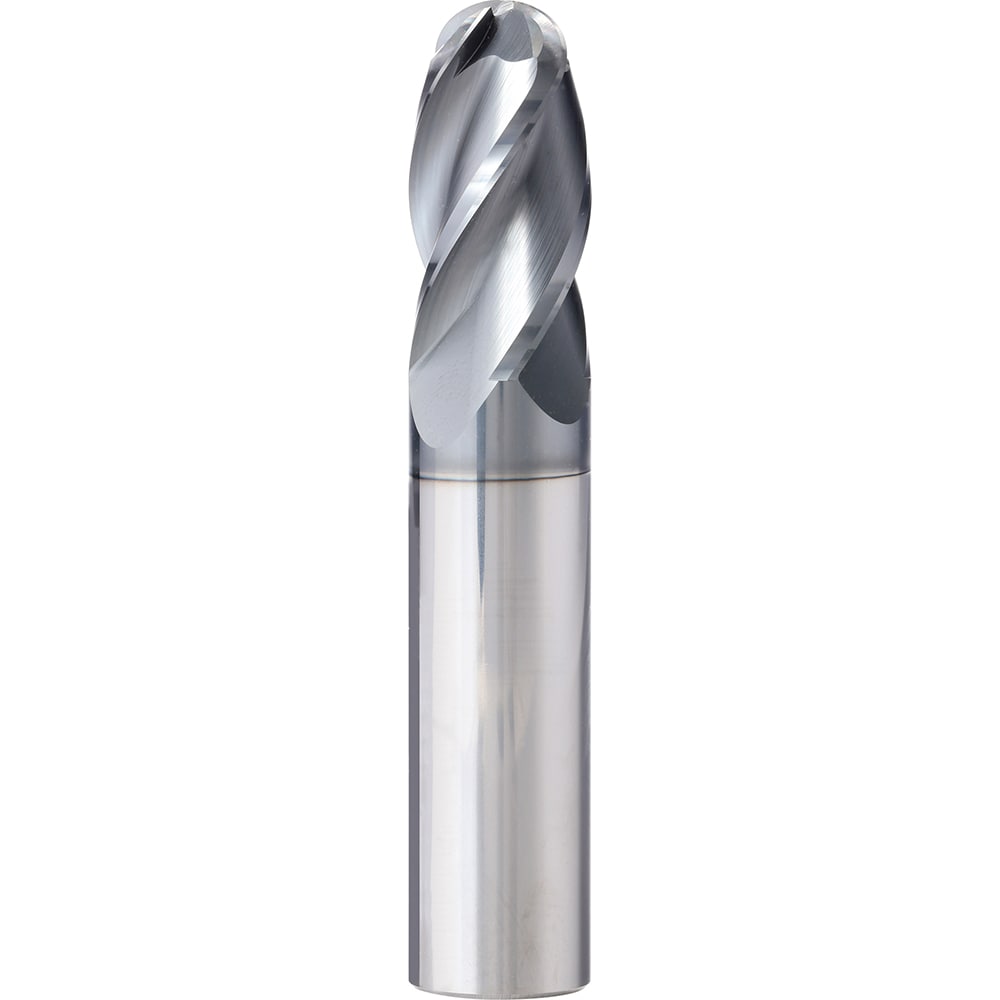

Ball End Mill: 5/16" Dia, 13/16" LOC, 4 Flute, Solid Carbide
Item #: 43813807
Brand: Supermill
Model #: SAPB312A
Product Specifications
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3125 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 13/16 |
| Coating/Finish | AlTin |
| Overall Length (Inch) | 2-1/2 |
| Shank Diameter (Inch) | 5/16 |
| Extended Reach | No |
| Variable Helix | No |
| Variable Index | Yes |
| Helix Angle | 35 |
| Overall Length (Decimal Inch) | 2.5000 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.7000 - 1.0000 |
| Length Type | Standard |
| Helix Style | Medium |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Nose Radius (Decimal Inch) | 0.1563 |
| Neck Length (Decimal Inch) | 0.0000 |
| Reach Length (Decimal Inch) | 0.8125 |
| Maximum Helix Angle | 35 |
| Minimum Helix Angle | 35 |
| Primary Workpiece Material | Hard Material; Superalloys & Titanium |
| Primary Workpiece Material Code | S; H |
| Material Grade | Micrograin |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | SAPB-NB |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Variable |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.8125 |
| Manufacturers Catalog Number | 21523 |
| System Of Measurement | Fractional Inch |
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3125 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 13/16 |
| Coating/Finish | AlTin |
| Overall Length (Inch) | 2-1/2 |
| Shank Diameter (Inch) | 5/16 |
| Extended Reach | No |
| Variable Helix | No |
| Variable Index | Yes |
| Helix Angle | 35 |
| Overall Length (Decimal Inch) | 2.5000 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.7000 - 1.0000 |
| Length Type | Standard |
| Helix Style | Medium |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Nose Radius (Decimal Inch) | 0.1563 |
| Neck Length (Decimal Inch) | 0.0000 |
| Reach Length (Decimal Inch) | 0.8125 |
| Maximum Helix Angle | 35 |
| Minimum Helix Angle | 35 |
| Primary Workpiece Material | Hard Material; Superalloys & Titanium |
| Primary Workpiece Material Code | S; H |
| Material Grade | Micrograin |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | SAPB-NB |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Variable |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.8125 |
| Manufacturers Catalog Number | 21523 |
| System Of Measurement | Fractional Inch |
| MSC Part # | 43813807 |
| Mfr Part # | SAPB312A |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
