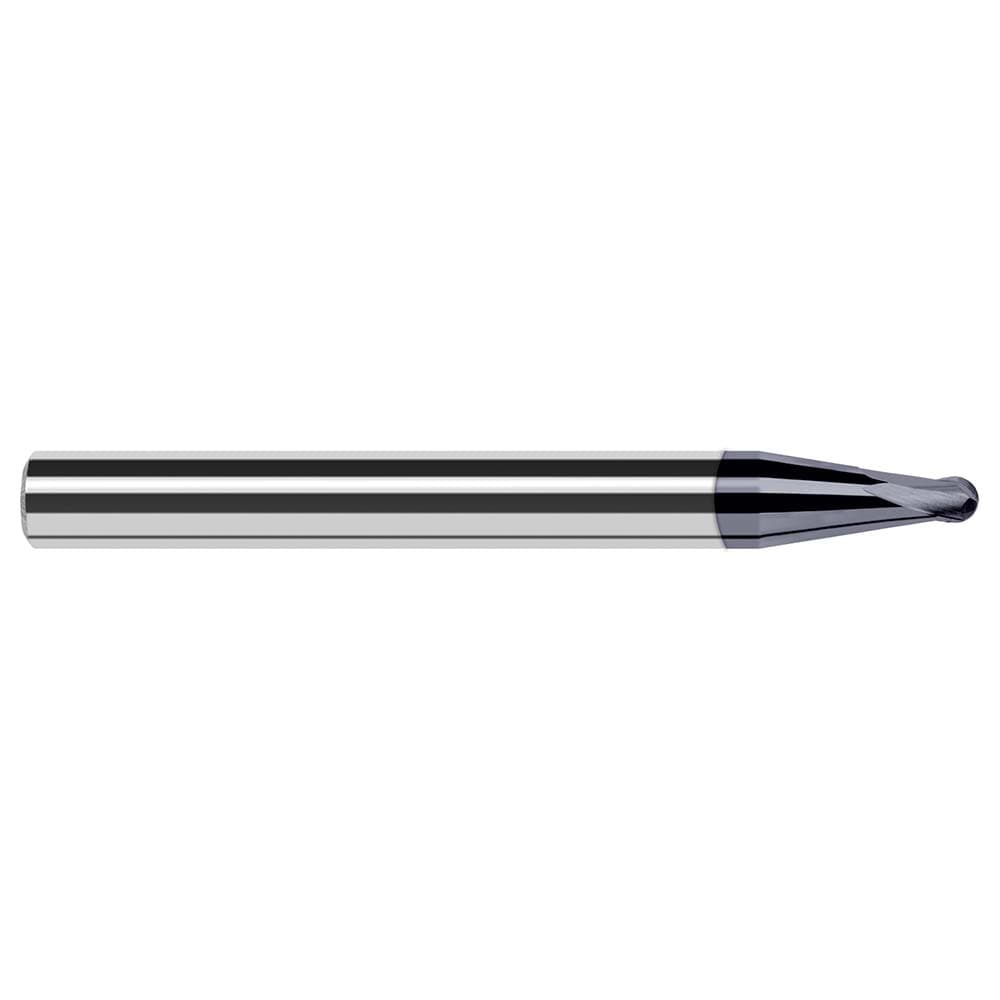

Ball End Mill: 3/64" Dia, 0.0380" LOC, 2 Flute, Solid Carbide
Item #: 51527307
Brand: Harvey Tool
Model #: 40447-C6
Product Specifications
| Mill Diameter (Inch) | 3/64 |
| Mill Diameter (Decimal Inch) | 0.0470 |
| Mill Diameter (mm) | 1.20 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiN Nano |
| Overall Length (Inch) | 2-1/2 |
| Shank Diameter (Inch) | 1/4 |
| Extended Reach | Yes |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 35 |
| Overall Length (Decimal Inch) | 2.5000 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.0000 - 0.0500 |
| Length Type | Stub |
| Helix Style | Medium |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Nose Radius (Decimal Inch) | 0.0235 |
| Neck Length (Decimal Inch) | 0.8270 |
| Reach Length (Decimal Inch) | 0.8650 |
| Mill Diameter Tolerance | +0.0000/-0.0010 in |
| Shank Diameter Tolerance | h6 |
| Maximum Helix Angle | 35 |
| Minimum Helix Angle | 35 |
| Primary Workpiece Material | Hard Material; Steel |
| Primary Workpiece Material Code | P; H |
| Secondary Workpiece Material | Stainless Steel; Cast Iron |
| Secondary Workpiece Material Code | K; M |
| Material Grade | Carbide |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | High Helix End Mills for Medium Alloy Steels - Ball - Tapered Reach (Mold Cutters), Material Specific End Mills |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Coarse |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0380 |
| Manufacturers Catalog Number | 40447-C6 |
| System Of Measurement | Fractional Inch |
