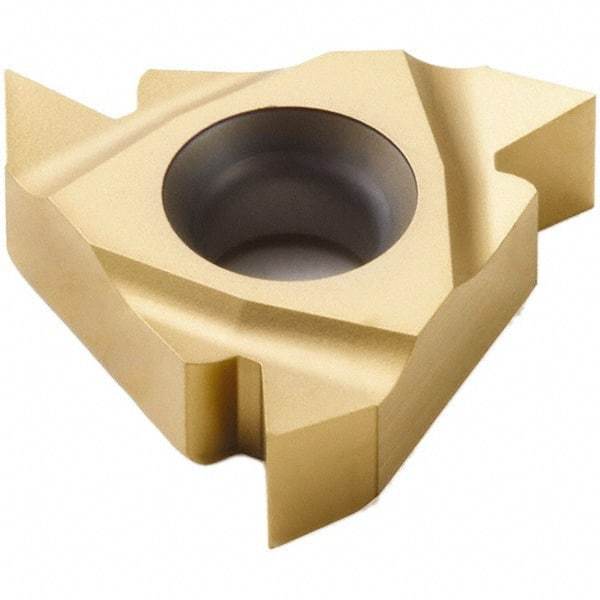

Seco - 22ER External Right Hand 7-5 Partial Profile 60° Laydown Threading Insert - Grade CP500, TiAlN/TiN Coated Carbide - Benchmark Tooling

Seco - 22ER External Right Hand 7-5 Partial Profile 60° Laydown Threading Insert - Grade CP500, TiAlN/TiN Coated Carbide


Item #: 32154833
Brand: Seco
Model #: 68403
Exact Tooling IR#: 04

Features and Benefits

Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Product Specifications
Material Carbide
Insert Style 22ER
Insert Hand Right Hand
Thread Type External
Thread Standard Partial Profile 60
Material Grade Micrograin
Manufacturer's Grade CP500
Threads Per Inch 7-5
Pitch (mm) 3.50-5.00
Inscribed Circle (Inch) 1/2
Inscribed Circle (Decimal Inch) 0.5000
Thickness (Decimal Inch) 0.1854
Coating TiAlN/TiN
Coating Process PVD
Corner Radius (Decimal Inch) 0.0160
Cutting Edge to Theoretical Edge Length (Decimal Inch) 0.071
Face of Insert to Tip Centerline (Decimal Inch) 0.098
$56.43
