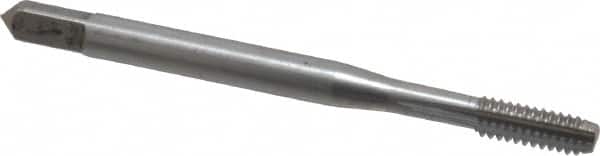

Balax - #8-32 UNC 2B 3 Flute Bright Finish Cobalt Straight Flute Machine Tap - Bottoming, Right Hand Thread, 2-1/8" OAL, 1/2" Thread Length, H3 Limit, Oversize
Item #: 32056061
Brand: Balax
Model #: 54013
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (Inch) | #8-32 |
| Class of Fit | 2B |
| Thread Limit | H3 |
| Number of Flutes | 3 |
| Chamfer | Bottoming |
| Material | Cobalt |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNC |
| Overall Length (Inch) | 2-1/8 |
| Oversize | No |
| Material Grade | M42 |
| Series/List | BX600 |
| Thread Length (Decimal Inch) | 0.5000 |
| Neck Length (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.1680 |
| Square Length (Inch) | 1/4 |
| Square Size (Decimal Inch) | 0.1310 |
| Material Application | Aluminum; Cast Iron; Magnesium; Zinc |
