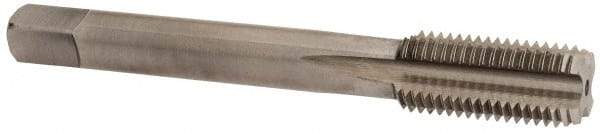

Balax - 7/16-20 UNF 4 Flute Bright Finish Cobalt Straight Flute Machine Tap - Bottoming, Right Hand Thread, 3-5/32" OAL, 0.95" Thread Length, H3 Limit, Oversize
Item #: 32056046
Brand: Balax
Model #: 54113
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (Inch) | 7/16-20 |
| Thread Limit | H3 |
| Number of Flutes | 4 |
| Chamfer | Bottoming |
| Material | Cobalt |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNF |
| Overall Length (Inch) | 3-5/32 |
| Oversize | No |
| Material Grade | M42 |
| Series/List | BX600 |
| Thread Length (Decimal Inch) | 0.9500 |
| Shank Diameter (Decimal Inch) | 0.3230 |
| Square Length (Inch) | 13/32 |
| Square Size (Decimal Inch) | 0.2420 |
| Material Application | Aluminum; Cast Iron; Magnesium; Zinc |
