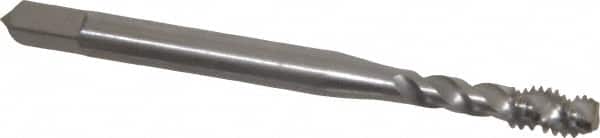

Balax - #8-32 UNC 3 Flute 2B Modified Bottoming Spiral Flute Tap
Item #: 32048365
Brand: Balax
Model #: 40053-010
Product Specifications
| Thread Size (Inch) | #8-32 |
| Chamfer | Modified Bottoming |
| Class of Fit | 2B |
| Thread Limit | H3 |
| Number of Flutes | 3 |
| Material | Powdered Metal |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Inch) | 2-1/8 |
| Helix Angle | 45 |
| Thread Standard | UNC |
| Material Grade | M42 |
| Oversize | No |
| Thread Length (Decimal Inch) | 0.5000 |
| Flute Type | Fast Spiral |
| Series/List | BX200 |
| Neck Length (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.1680 |
| Square Length (Inch) | 1/4 |
| Material Application | Aluminum; Brass; Bronze; Carbon Steel; Copper; Magnesium; Stainless Steel; Wrought Aluminum Alloy; Zinc |
