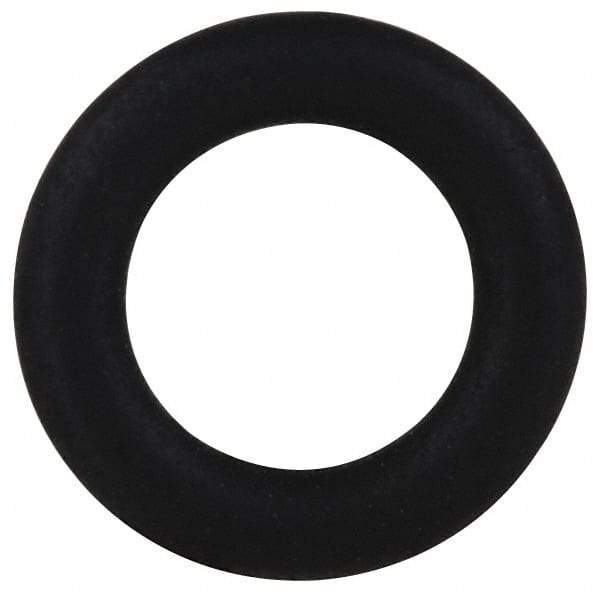

Value Collection - 1/2" ID x 5/8" OD, Kalrez O-Ring - 1/16" Thick, Round Cross Section
Item #: 31957640
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Round cross-section shapes can be used in both static and dynamic applications. They are used as a mechanical seal or gasket and are seated in a groove and compressed during assembly between two or more parts.
Kalrez is a perfluoroelastomer similar to PTFE and has a high resistance to chemicals, solvents and plasmas. It also maintains sealing force at high temperatures to reduce leakage.
| Product Specifications | |
|---|---|
| Cross Section Shape | Round |
| Material | Kalrez |
| Dash Number | 014 |
| System of Measurement | Inch |
| Durometer (Shore A) | 70 - 80 |
| Inside Diameter (Inch) | 1/2 |
| Inside Diameter (Decimal Inch) | 0.5000 |
| Outside Diameter (Inch) | 5/8 |
| Outside Diameter (Decimal Inch) | 0.6250 |
| Thickness (Inch) | 1/16 |
| Maximum Temperature (F) | 500.000 |
| Minimum Temperature (F) | 0.000 |
