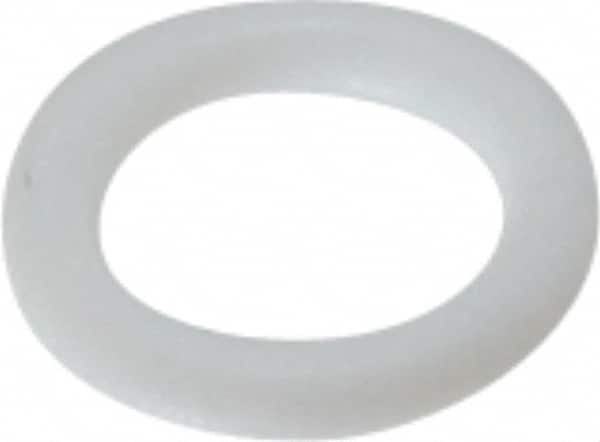

Value Collection - 5/16" ID x 7/16" OD, PTFE O-Ring - 1/16" Thick, Round Cross Section
Item #: 31955248
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Round cross-section shapes can be used in both static and dynamic applications. They are used as a mechanical seal or gasket and are seated in a groove and compressed during assembly between two or more parts.
PTFE is a thermoplastic fluoroethylene resin that offers excellent chemical and temperature resistance. It also offer low friction, dielectric strength, zero water absorption, toughness and flexibility.
| Product Specifications | |
|---|---|
| Cross Section Shape | Round |
| Material | PTFE |
| Dash Number | 011 |
| System of Measurement | Inch |
| Durometer (Shore A) | 55 |
| Inside Diameter (Inch) | 5/16 |
| Inside Diameter (Decimal Inch) | 0.3130 |
| Outside Diameter (Inch) | 7/16 |
| Outside Diameter (Decimal Inch) | 0.4380 |
| Thickness (Inch) | 1/16 |
| Maximum Temperature (F) | 500.000 |
| Minimum Temperature (F) | -300.000 |
