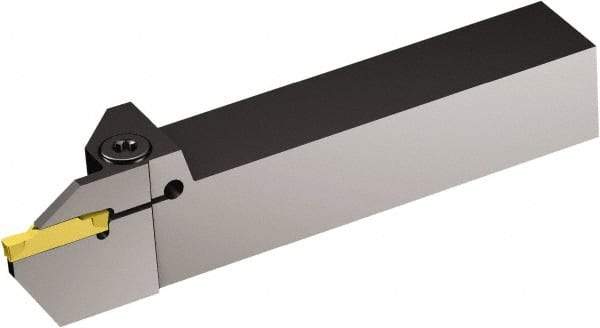

Sandvik Coromant - External Thread, 0.79" Max Depth of Cut, 3mm Min Groove Width, 6" OAL, Left Hand Indexable Grooving Cutoff Toolholder - 1" Shank Height x 1" Shank Width, N123G2-0300-CM Insert Style, LF123..B Toolholder Style, Series CoroCut 1-2
Item #: 31873292
Brand: Sandvik Coromant
Model #: 5733414
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 20.07 |
| Maximum Depth of Cut (Decimal Inch) | 0.7900 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 4.00 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (mm) | 152.40 |
| Series | CoroCut 1-2 |
| Toolholder Style | LF123..B |
| Insert Compatibility | N123G2-0300-CM |
| Shank Height (mm) | 25.40 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Head Height (mm) | 25.40 |
| Head Height (Decimal Inch) | 1.0000 |
| Head Length (mm) | 25.40 |
| Head Length (Decimal Inch) | 1.0000 |
| Shank Length (Decimal Inch) | 5.1200 |
| Shank Length (mm) | 130.05 |
| Manufacturers Catalog Number | LF123G079-16B |
