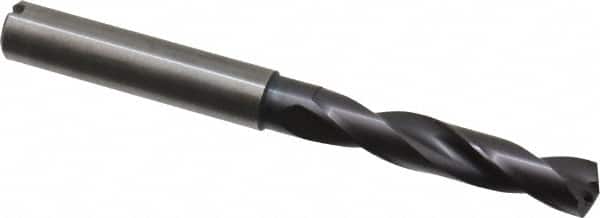

Guhring - 7.2mm 140° Spiral Flute Solid Carbide Screw Machine Drill Bit - FIREX Finish, Right Hand Cut, 41mm Flute Length, 79mm OAL, SU Point, Straight Shank, Through Coolant
Item #: 31734882
Brand: Guhring
Model #: 9055100072000
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
FIREX is a multi-layer coating that combines the characteristics of universal applicability of TiN, the heat resistance of TiAlN and the shock resistance of TiCN. FIREX is a proprietary coating exclusive to Guhring, Inc.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.2835 |
| Drill Bit Size (mm) | 7.20 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | FIREX |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 41.00 |
| Overall Length (mm) | 79.00 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | SU Point |
| Shank Diameter (mm) | 8.00 |
| Specification Designation | DIN |
| Maximum Drilling Depth (mm) | 38.00 |
| Spiral Type | Regular Spiral |
| Threaded Shank | No |
| Web Configuration | Parallel |
| Drill Bit Diameter Tolerance (mm) | +0.006 to +0.021 |
| Specification Number | DIN 6537K |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | High Performance |
| Material Grade | Submicron |
| Series/List | 5510 |
