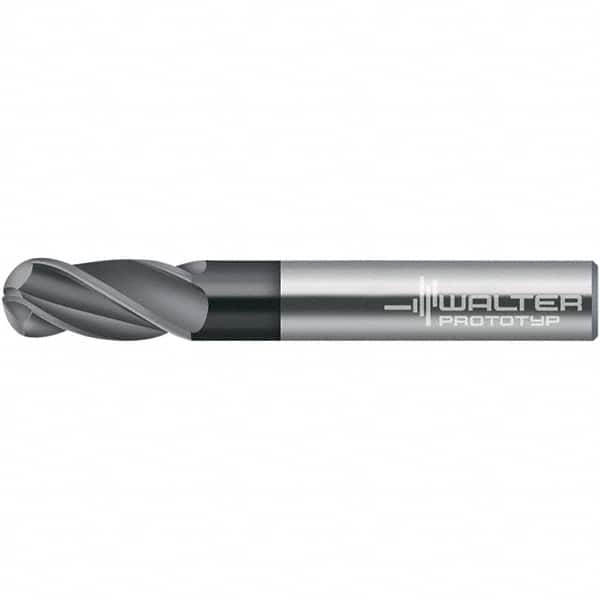

Walter-Prototyp - 1/8" Diam, 12.7mm LOC, 2 Flute Solid Carbide Ball End Mill - TiAlN Finish, 63.5mm OAL, 6.35mm Shank Diam
Item #: 31728660
Brand: Walter-Prototyp
Model #: 6959810
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 3.18 |
| Mill Diameter (Decimal Inch) | 0.1250 |
| Number of Flutes | 2 |
| Length of Cut (mm) | 12.70 |
| Length of Cut (Decimal Inch) | 0.5000 |
| Material | Solid Carbide |
| Overall Length (mm) | 63.50 |
| Overall Length (Decimal Inch) | 2.5000 |
| Shank Diameter (mm) | 6.35 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Finish/Coating | TiAlN |
| Helix Angle | 30 |
| Material Grade | Carbide |
| Nose Radius (Decimal Inch) | 0.063 |
| Series/List | MC416.A-4-D |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
