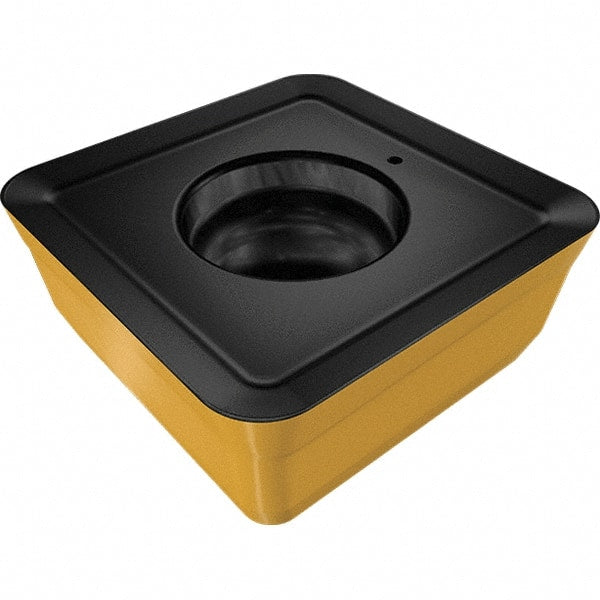

Iscar - FFQ4SOMT170625HP IC830 Carbide Milling Insert
Item #: 31652829
Brand: Iscar
Model #: 3323582
Product Specifications
| Insert Style | SOMT |
| Insert Size | 170625 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/AlTiN/TiN |
| Length (mm) | 17.50 |
| Length (Decimal Inch) | 0.6880 |
| Thickness (mm) | 6.00 |
| Thickness (Decimal Inch) | 0.2362 |
| Corner Radius (Decimal Inch) | 0.0984 |
| Corner Radius (mm) | 2.50 |
| Coating Process | PVD |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Cutter Series Compatibility | FFQ4 |
