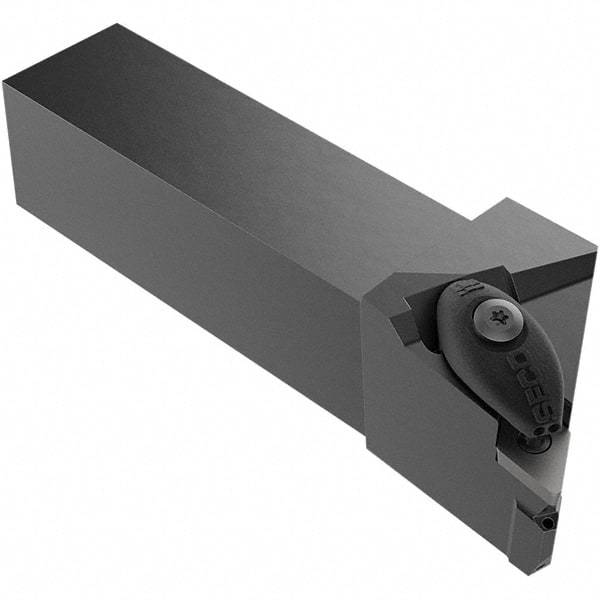

Seco - DDJNL, Left Hand Cut, 93° Lead Angle, 25mm Shank Height x 25mm Shank Width, Negative Rake Indexable Turning Toolholder - 120mm OAL, DN1104 Insert Compatibility, Series Jetstream
Item #: 31642176
Brand: Seco
Model #: 03213113
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | DDJNL |
| Rake | Negative |
| Rake Angle | -6.34 |
| Series | Jetstream |
| Lead Angle | 93 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9800 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9800 |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Insert Compatibility | DN1104 |
| Multi-Use Tool | No |
| Multi-Use Application | External Turning |
| Insert Holding Method | Hole & Top Clamp |
| Head Length (mm) | 38.00 |
| Head Length (Decimal Inch) | 1.5000 |
| Toolholder Material | Steel |
