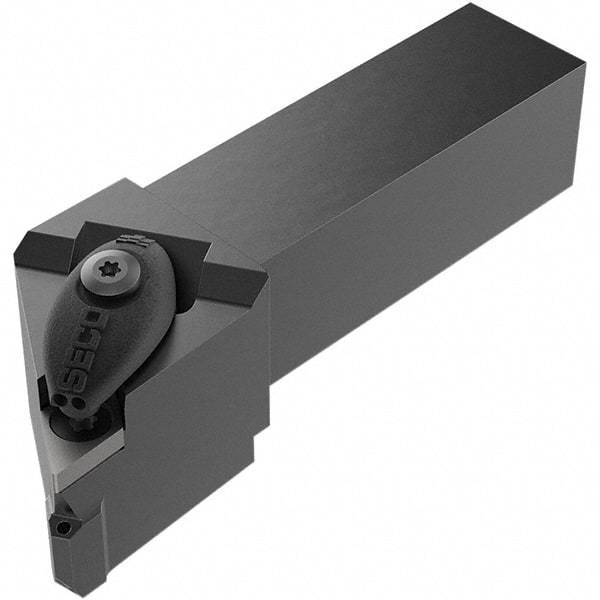

Seco - DDJCR, Right Hand Cut, 93° Lead Angle, 20mm Shank Height x 20mm Shank Width, Neutral Rake Indexable Turning Toolholder - 95mm OAL, DC1104 Insert Compatibility, Series Jetstream
Item #: 31642077
Brand: Seco
Model #: 03213110
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | DDJCR |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | Jetstream |
| Lead Angle | 93 |
| Shank Width (mm) | 20.00 |
| Shank Width (Decimal Inch) | 0.7900 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7900 |
| Overall Length (mm) | 95.00 |
| Overall Length (Decimal Inch) | 3.7402 |
| Insert Compatibility | DC1104 |
| Multi-Use Tool | No |
| Multi-Use Application | External Turning |
| Insert Holding Method | Hole & Top Clamp |
| Head Length (mm) | 35.00 |
| Head Length (Decimal Inch) | 1.3800 |
| Toolholder Material | Steel |
