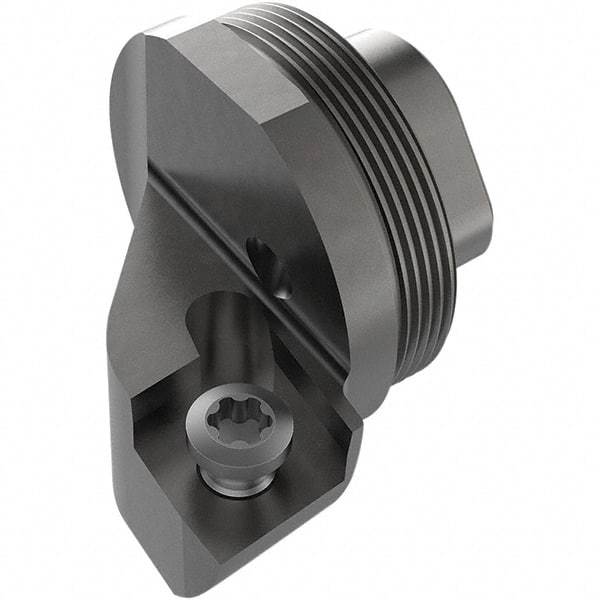

Seco - Right Hand Cut, Size GL25, CC09T3 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 17mm Ctr to Cutting Edge, 20mm Head Length, Through Coolant, Series Steadyline ISO Turning
Item #: 31634983
Brand: Seco
Model #: 03211318
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | GL25 |
| Series Name | Steadyline ISO Turning |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 20.00 |
| Head Length/Projection (Decimal Inch) | 0.7900 |
| Insert Style | CC09T3 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6700 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 0.70 |
| Maximum Hole Depth (Decimal Inch) | 0.0300 |
| Minimum Hole Diameter (mm) | 1.40 |
| Minimum Hole Diameter (Decimal Inch) | 0.0600 |
| Axial Rake Angle | -0.3 |
| Radial Rake Angle | -2.99 |
