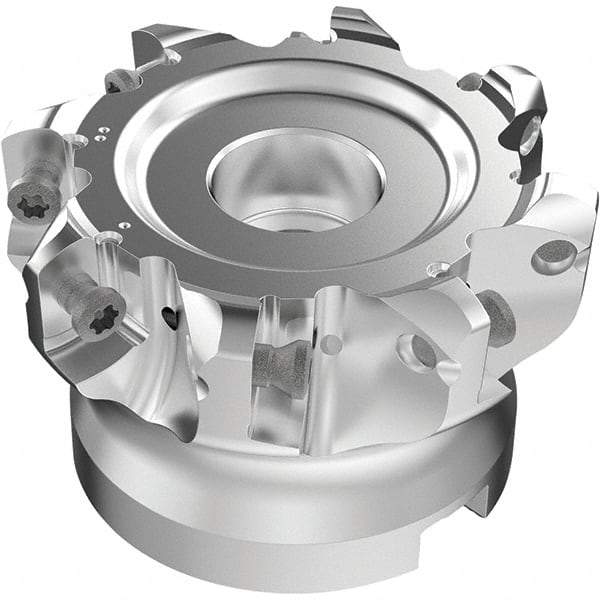

Seco - 8 Inserts, 53.1mm Cutter Diam, 1.8mm Max Depth of Cut, Indexable High-Feed Face Mill - 27mm Arbor Hole Diam, 0.4882" Keyway Width, 50mm High, R220.21-LP09 Toolholder, LPKT09 Inserts, Series High Feed
Item #: 31634835
Brand: Seco
Model #: 03212896
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0900 |
| Cutting Diameter (mm) | 53.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.0700 |
| Maximum Depth of Cut (mm) | 1.80 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Arbor Hole Diameter (mm) | 27.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Series | High Feed |
| Cutter Style | R220.21-LP09 |
| Number of Cutter Inserts | 8 |
| Insert Compatibility | LPKT09 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 21600 |
| Number of Flutes | 8 |
| Maximum Body Diameter (Decimal Inch) | 2.5984 |
| Maximum Body Diameter (mm) | 66.00 |
| Through Coolant | Yes |
| Complete Insert Compatibility | LPxx09 |
| Keyway Width (Decimal Inch) | 0.4882 |
