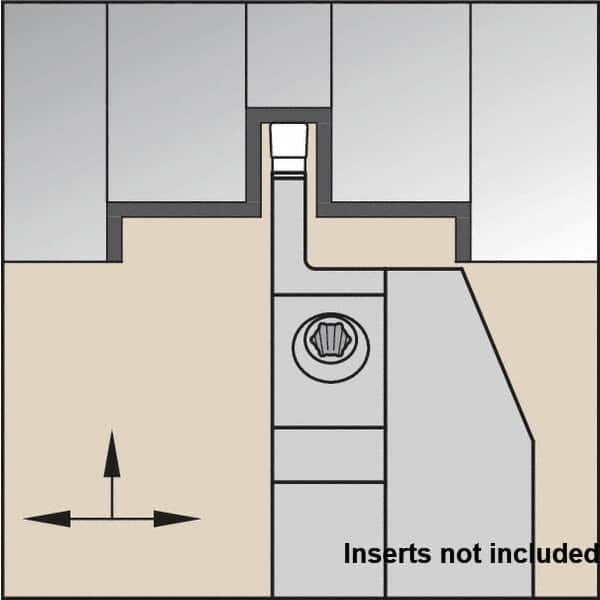

Kennametal - 6" Groove Width, 26mm Max Depth of Cut, Right Hand Cut, A4M-C Indexable Grooving Blade - 6mm Insert Width, 6 Seat Size, A4G0600M06P Insert Style, Series A4
Item #: 31607054
Brand: Kennametal
Model #: 6401835
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Minimum Groove Width (mm) | 6.00 |
| Maximum Insert Width (mm) | 6.00 |
| Minimum Insert Width (mm) | 6.00 |
| Maximum Depth of Cut (mm) | 26.00 |
| Blade Style | A4M-C |
| Series | A4 |
| Blade Height (mm) | 42.05 |
| Blade Width (mm) | 12.50 |
| Maximum Groove Width (mm) | 6.00 |
| Overall Length (mm) | 59.62 |
| Blade Overall Length (mm) | 6.00 |
| Manufacturers Catalog Number | A4M65R0626MC |
| Insert Style | A4G0600M06P |
| Insert Seat Size | 6 |
| Cartridge Size | 65 |
