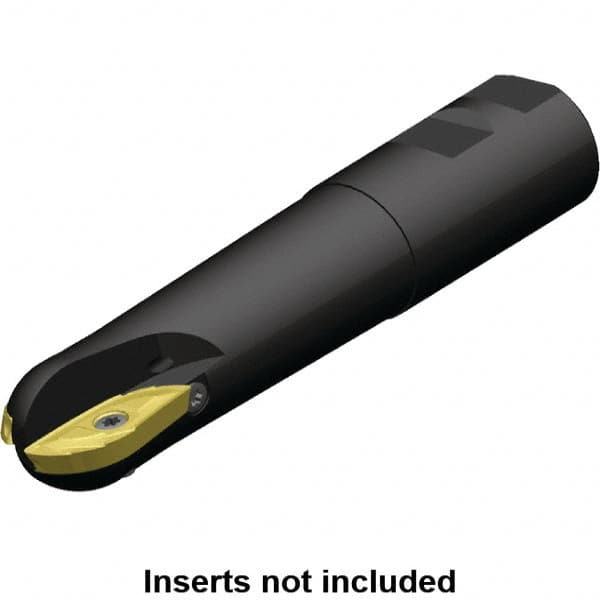

Kennametal - 1-1/4" Cut Diam, 1-1/4" Max Depth of Cut, 1" Shank Diam, 134.12mm OAL, Indexable Ball Nose End Mill - 3" Head Length, Weldon Shank, 5505 Toolholder, XPNT32320612RF Insert
Item #: 31595887
Brand: Kennametal
Model #: 5672838
Exact Tooling IR#: 04
Features and Benefits
Weldon flats, also known as Weldon Shanks, are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 31.75 |
| Cutting Diameter (Inch) | 1-1/4 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (Decimal Inch) | 1.2500 |
| Shank Type | Weldon Shank |
| Shank Diameter (Inch) | 1 1/4 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | XPNT32320612RF |
| Toolholder Style | 5505 |
| Series | 5505 |
| Overall Length (mm) | 134.12 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 3.0000 |
| Maximum RPM | 23500 |
