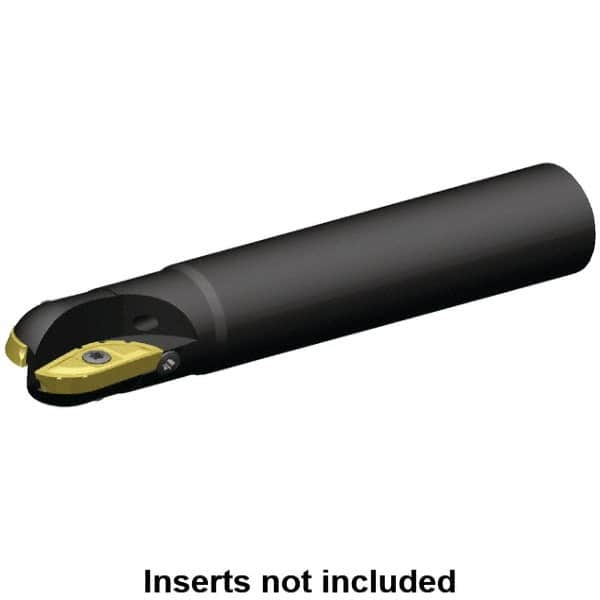

Kennametal - 1" Cut Diam, 25mm Max Depth of Cut, 1" Shank Diam, 256mm OAL, Indexable Ball Nose End Mill - 55mm Head Length, Straight Shank, 5505 Toolholder, XPNT080832RF Insert
Item #: 31595796
Brand: Kennametal
Model #: 5672848
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.40 |
| Cutting Diameter (Inch) | 1 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (mm) | 25.00 |
| Shank Type | Cylindrical Shank |
| Shank Diameter (Inch) | 1 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | XPNT080832RF |
| Toolholder Style | 5505 |
| Series | 5505 |
| Overall Length (mm) | 256.00 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Number of Flutes | 2 |
| Head Length (mm) | 55.00 |
| Maximum RPM | 30000 |
