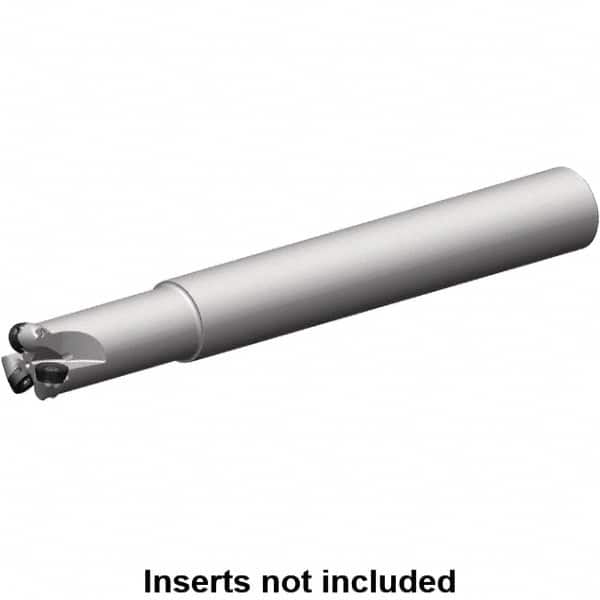

Kennametal - 10mm Cutting Diam, 32mm Shank Diam, 1.2598" Max Depth of Cut, Straight Shank Indexable Copy End Mill - 4 Inserts, RP.. 10T3M0.. Insert, 7713 Toolholder, Steel, Through Coolant
Item #: 31595663
Brand: Kennametal
Model #: 5673048
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Maximum Depth of Cut (mm) | 5.00 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Number of Cutter Inserts | 4 |
| Insert Style | RP.. 10T3M0.. |
| Toolholder Style | 7713 |
| Series | 7713 |
| Overall Length (mm) | 250.00 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Number of Flutes | 4 |
| Minimum Cutting Diameter (mm) | 22.00 |
| Head Length (mm) | 70.00 |
| Shank Length (mm) | 180.00 |
| Maximum RPM | 53500 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2598 |
| Minimum Cutting Diameter (Decimal Inch) | 0.8661 |
