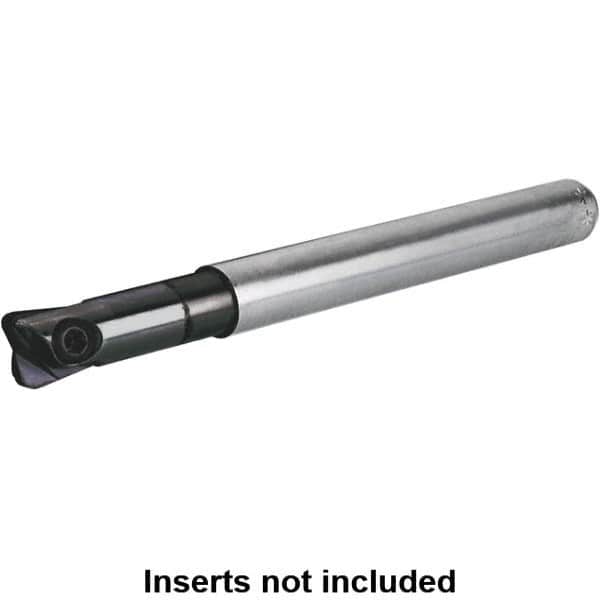

Kennametal - 5/8" Cut Diam, 4mm Max Depth of Cut, 5/8" Shank Diam, 160mm OAL, Indexable Ball Nose End Mill - 55mm Head Length, Straight Shank, KDMT Toolholder, KDMT 0625.. Insert
Item #: 31586183
Brand: Kennametal
Model #: 2957831
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 5/8 |
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Maximum Depth of Cut (mm) | 4.00 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 5/8 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | KDMT 0625.. |
| Toolholder Style | KDMT |
| Series | KDMT |
| Overall Length (mm) | 160.00 |
| Insert Holding Method | Screw & Clamp |
| Toolholder Material | Steel |
| Through Coolant | No |
| Number of Flutes | 2 |
| Head Length (mm) | 55.00 |
| Neck Diameter (Decimal Inch) | 0.5600 |
| Maximum RPM | 40000 |
