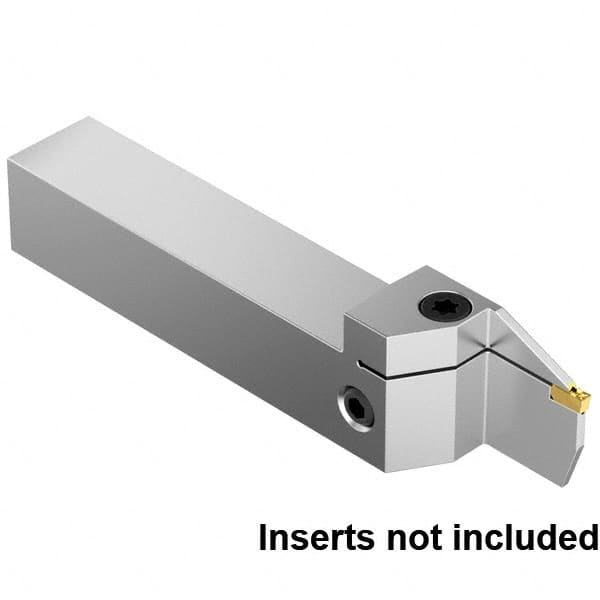

Kennametal - External Thread, 22mm Max Cut of Depth, 2mm Min Groove Width, 5" OAL, Right Hand Indexable Grooving Cutoff Toolholder - 3/4" Shank Height x 3/4" Shank Width, EG0200M02P02 Insert Style, EVSM Toolholder Style, Series EVSM
Item #: 31582232
Brand: Kennametal
Model #: 6401860
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 22.00 |
| Minimum Groove Width (mm) | 2.00 |
| Maximum Groove Width (mm) | 2.00 |
| Overall Length (Inch) | 5 |
| Series | EVSM |
| Toolholder Style | EVSM |
| Insert Compatibility | EG0200M02P02 |
| Shank Height (Inch) | 3/4 |
| Shank Width/Diameter (Inch) | 3/4 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7120 |
| Head Height (mm) | 27.80 |
| Head Length (mm) | 41.30 |
| Shank Length (mm) | 73.00 |
| Manufacturers Catalog Number | EVSMR120222C |
| Complete Insert Compatibility | EG0200M02P02 |
