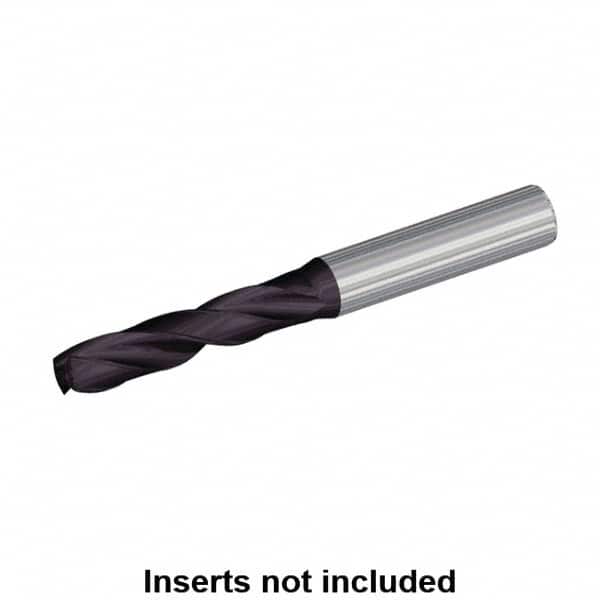

Kennametal - 18.5mm 140° Spiral Flute Solid Carbide Screw Machine Drill Bit - TiAlN Finish, Right Hand Cut, 79mm Flute Length, 131mm OAL, Straight Shank, Through Coolant
Item #: 31561368
Brand: Kennametal
Model #: 1913563
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.7283 |
| Drill Bit Size (mm) | 18.50 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 79.00 |
| Overall Length (mm) | 131.00 |
| Flute Length x Diameter Ratio | 3xD |
| Shank Diameter (mm) | 20.00 |
| Flute Type | Helical |
| Maximum Drilling Depth (mm) | 55.00 |
| Number of Flutes | 2 |
| Shank Length (mm) | 50.00 |
| Number of Flutes | 2 |
| Drill Point Length (mm) | 3.21 |
| Drill Tip Finish/Coating | TiAlN |
| Material Grade | KC7315 |
| Series/List | B976 |
