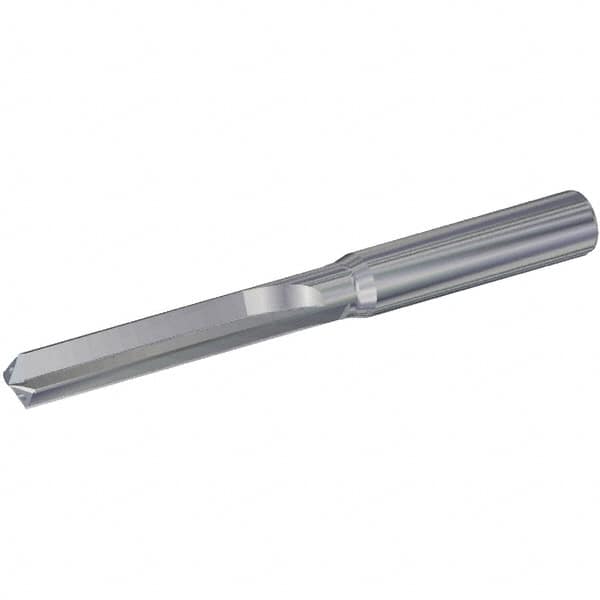

Die Drill Bit: 0.2402″ Dia, 130 °, Solid Carbide Bright/Polished Finish, Series B411
Item #: 31553803
Brand: Kennametal
Model #: 1833766
Product Specifications
| Drill Bit Type | Straight-Flute |
| Drill Bit Size (mm) | 6.10 |
| Tool Material | Carbide |
| Coating/Finish | Bright (Polished) |
| Flute Length (mm) | 53.00 |
| Drill Point Angle | 130 |
| Overall Length (mm) | 91.00 |
| Shank Diameter (mm) | 8.00 |
| Coolant Through | Yes |
| Drill Bit Size (Decimal Inch) | 0.2402 |
| Material Grade | KF1 |
| Series | B411 |
| Number Of Flutes | 2 |
| Point Type | Split |
| Cutting Direction | Right Hand |
| Drill Point Length (mm) | 1.32 |
| Maximum Drilling Depth (mm) | 43.00 |
| Shank Length (mm) | 36.00 |
| Flute By Diameter Ratio | 5xD |
