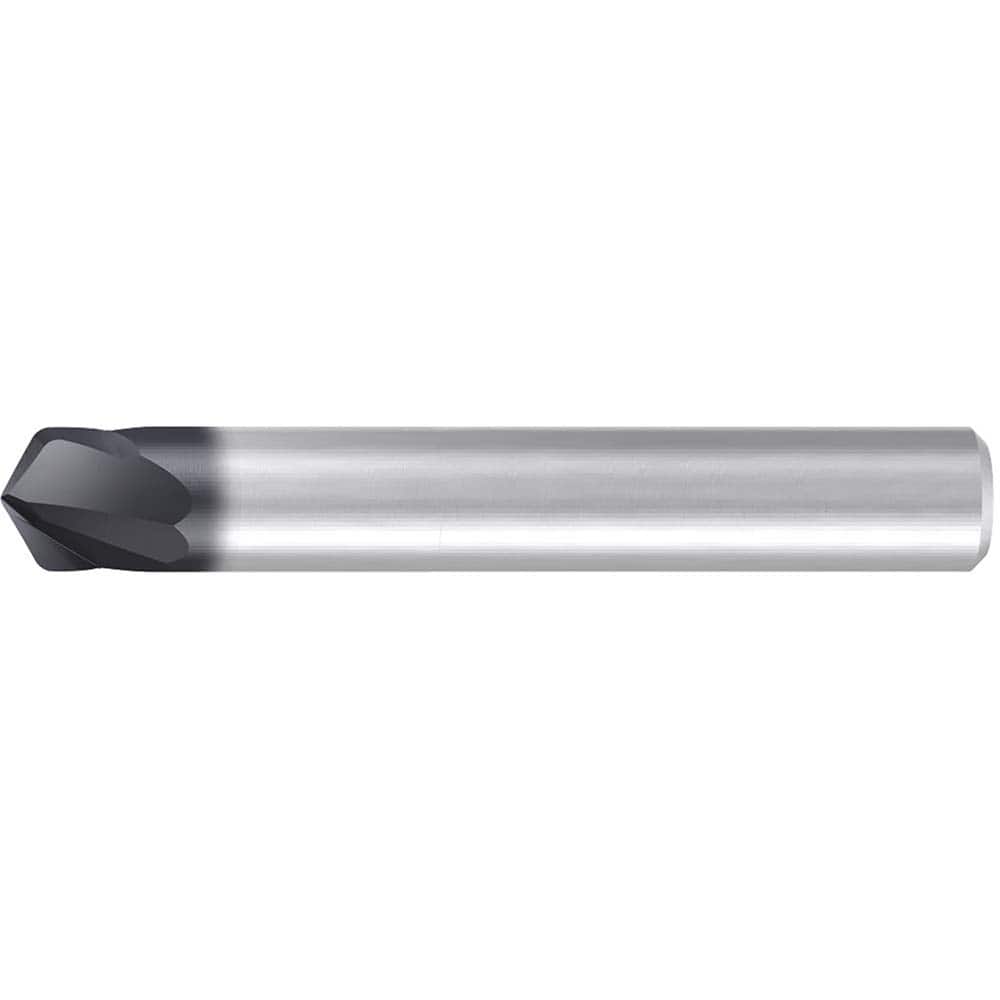

Emuge - Barrel Cutter End Mills; End Type: Circle Segment Taper-Form B ; Material: Solid Carbide ; Taper Angle Per Side: 70.00 ; Small End Diameter (mm): 2.00 ; Shank Diameter (mm): 10.0000 ; Length of Cut (mm): 6.0000
Item #: 31464043
Brand: Emuge
Model #: 3540L.10200B
Product Specifications
Barrel Cutter End Mills; End Type: Circle Segment Taper-Form B ; Material: Solid Carbide ; Taper Angle Per Side: 70.00 ; Small End Diameter (mm): 2.00 ; Shank Diameter (mm): 10.0000 ; Length of Cut (mm): 6.0000
| End Type | Circle Segment Taper-Form B |
| Material | Solid Carbide |
| Taper Angle Per Side | 70.00 |
| Small End Diameter (mm) | 2.00 |
| Shank Diameter (mm) | 10.0000 |
| Length of Cut (mm) | 6.0000 |
| Length of Cut (Inch) | 0 |
| Number of Flutes | 2 |
| Helix Angle | 30.00 |
| Finish/Coating | AlCr |
| Overall Length (mm) | 80.0000 |
| Flute Type | Spiral |
| Flute Direction | Right Hand |
| Shank Diameter Tolerance (Decimal Inch) | h6 |
| Series/List | 3540L |
