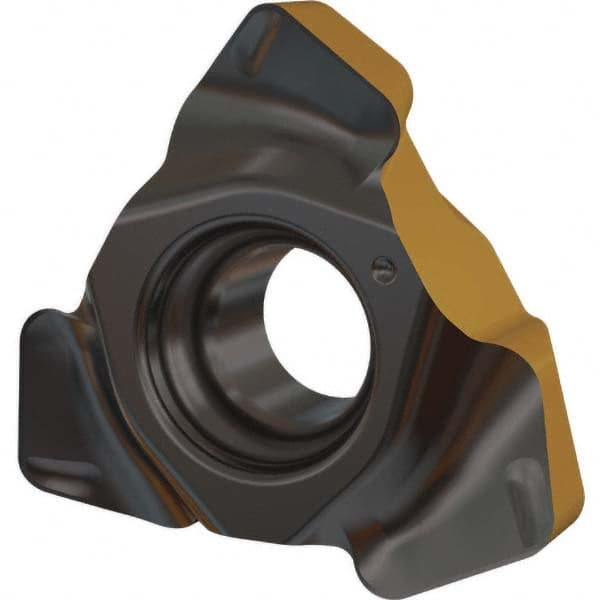

Iscar - TRFFTXMT0702 IC830 Carbide Milling Insert
Item #: 31450455
Brand: Iscar
Model #: 3320928
Product Specifications
| Insert Style | TXMT |
| Insert Size | 0702 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/AlTiN/TiN |
| Inscribed Circle (mm) | 5.30 |
| Inscribed Circle (Decimal Inch) | 0.2080 |
| Thickness (mm) | 2.40 |
| Thickness (Decimal Inch) | 0.0944 |
| Corner Radius (Decimal Inch) | 0.0196 |
| Corner Radius (mm) | 0.50 |
| Coating Process | PVD |
| Maximum Depth of Cut (mm) | 0.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.0236 |
| Cutter Series Compatibility | TRFF |
