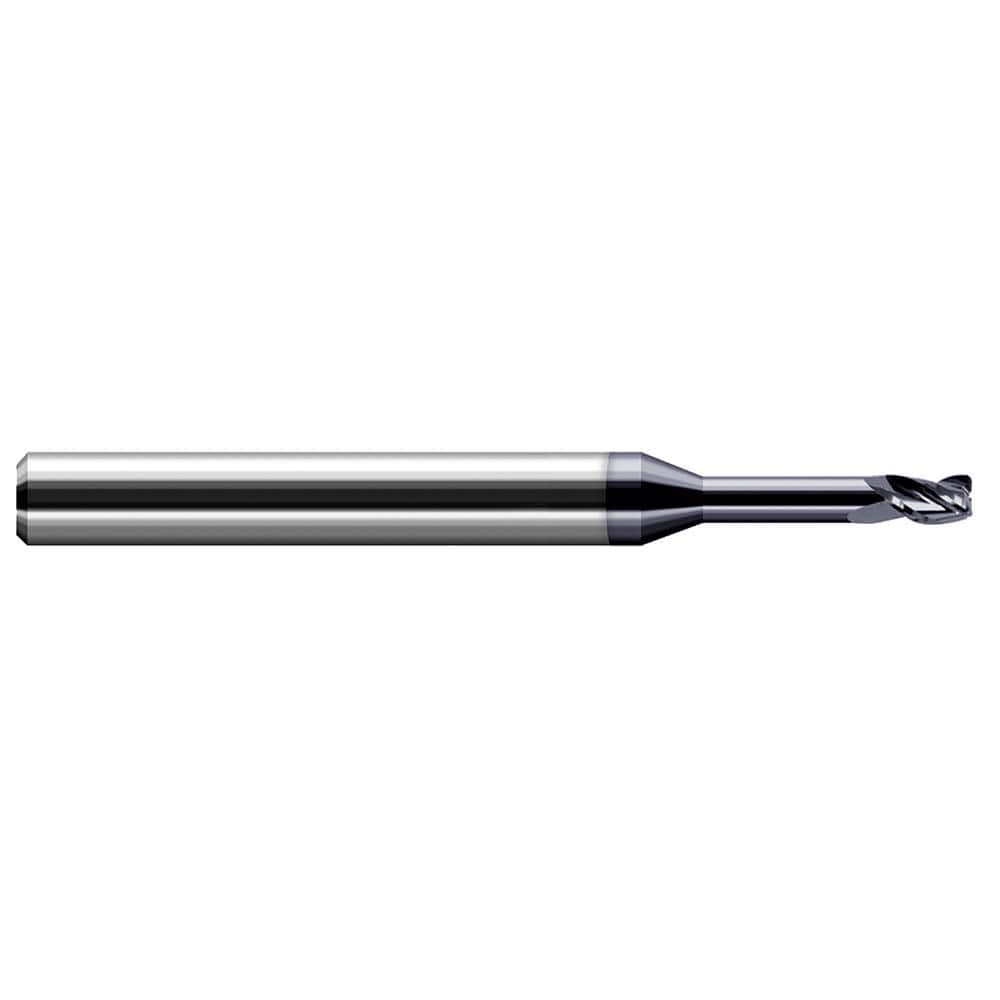

Harvey Tool - 1mm Diam 3 Flute Solid Carbide 0.005" Corner Radius
Item #: 31427545
Brand: Harvey Tool
Model #: 37139-C3
Product Specifications
| Mill Diameter (mm) | 1.00 |
| Mill Diameter (Decimal Inch) | 0.0390 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0050 |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Length of Cut (Decimal Inch) | 0.0520 |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 2-1/2 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 30 |
| Variable Helix | No |
| Reach Length (Inch) | 13/64 |
| Reach Length (Decimal Inch) | 0.2030 |
| Single or Double End | Single |
| Centercutting | Center Cutting |
| Flute Direction | Right Hand |
| Series/List | Miniature End Mills - Corner Radius - Long Reach, Stub Flute |
