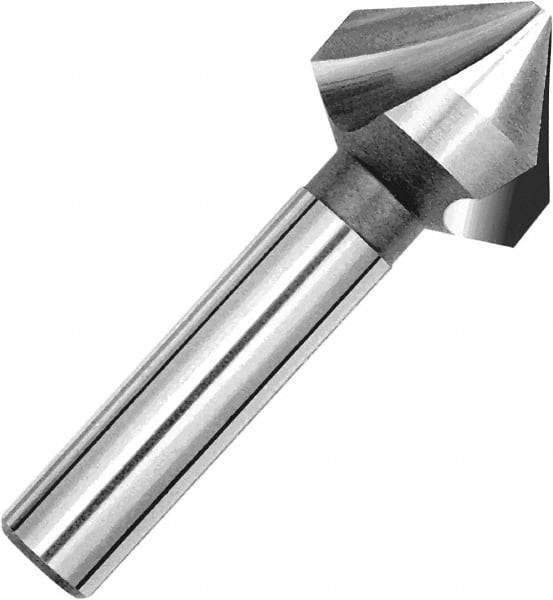

Magafor - 30mm Head Diam, 0.472" Shank Diam, 3 Flute 90° Cobalt Countersink - Uncoated, 2-3/4" OAL, Single End, Straight Shank, Right Hand Cut
Item #: 31285331
Brand: Magafor
Model #: 84431300000
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
| Product Specifications | |
|---|---|
| Head Diameter (mm) | 30.00 |
| Head Diameter (Decimal Inch) | 1.1810 |
| Number of Flutes | 3 |
| Included Angle | 90 |
| Countersink Material | Cobalt |
| Countersink Finish/Coating | Uncoated |
| Minimum Cutting Diameter (Inch) | 0.1380 |
| Shank Diameter (Decimal Inch) | 0.4720 |
| Maximum Cutting Diameter (Inch) | 1.1810 |
| Overall Length (Inch) | 2-3/4 |
| Minimum Hole Diameter (Decimal Inch) | 0.1380 |
| Maximum Hole Diameter (Decimal Inch) | 1.1810 |
| End Type | Single |
| Shank Type | Straight |
| Shank Material | Cobalt |
| Includes Pilot | No |
| Countersink Head Only | No |
| Attachment Method | Shank |
| Cutting Direction | Right Hand |
| Maximum Cutting Diameter (Decimal Inch) | 1.1810 |
