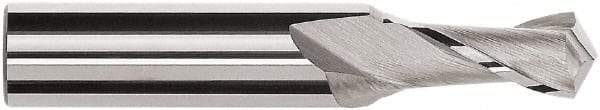

Magafor - 6mm Diam, 0.475" LOC, 2 Flute, 100° Point Angle, Solid Carbide Drill Mill - Bright Finish, 2-3/8" OAL, 0.315" Shank Diam
Item #: 31240252
Brand: Magafor
Model #: 88809506000
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on nonferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Material | Solid Carbide |
| Mill Diameter (mm) | 6.00 |
| Mill Diameter (Decimal Inch) | 0.2360 |
| Shank Diameter (Decimal Inch) | 0.315 |
| Length of Cut (Decimal Inch) | 0.4750 |
| Point Angle | 100 |
| Number of Flutes | 2 |
| Finish/Coating | Bright |
| Overall Length (Inch) | 2-3/8 |
| Material Grade | K15 Micrograin Carbide |
| Helix Angle | 30 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (Decimal Inch) | -0.0000/-0.0012 |
| Shank Diameter Tolerance (Decimal Inch) | +0.00000/-0.00030 |
