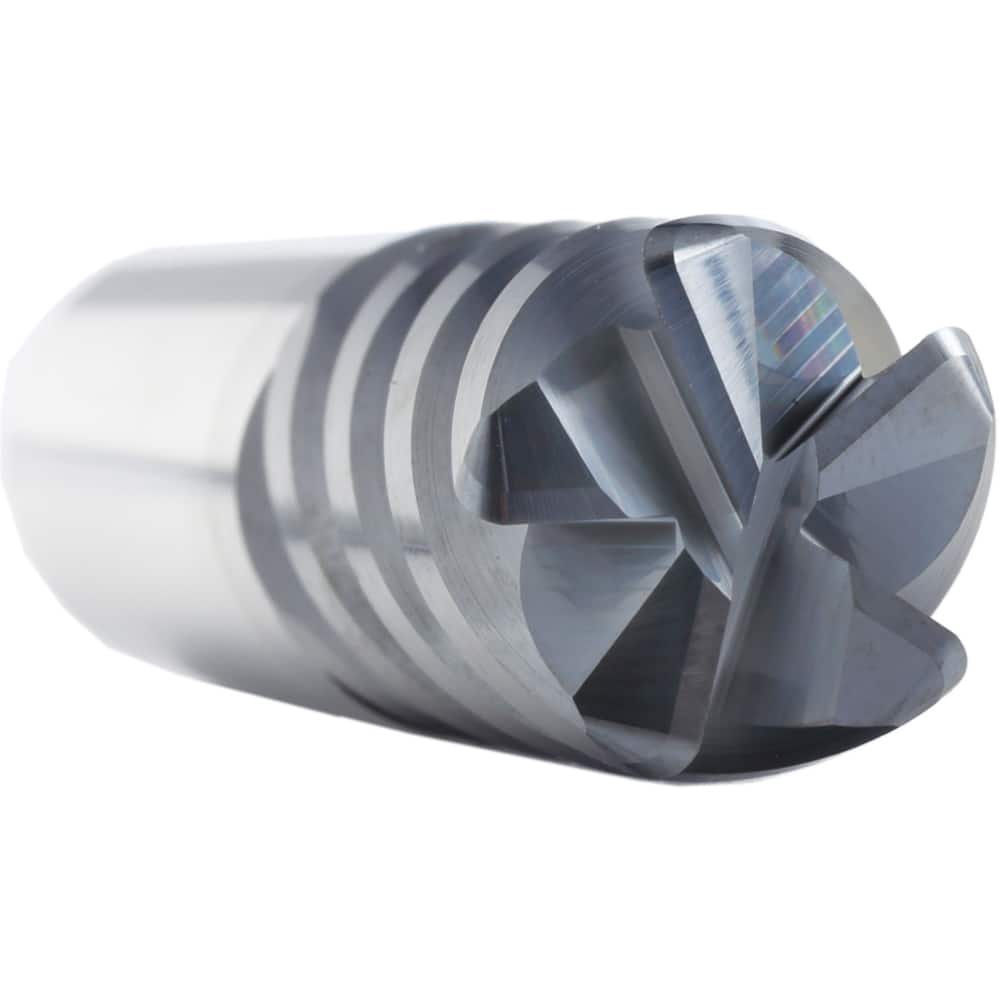

Corner Radius End Mill: 1/8″ Dia, 1/4″ LOC, 0.01″ Radius, 5 Flutes, Solid Carbide 1-1/2″ OAL, 1/8″ Shank Dia, 45 ° Helix, AlCrN Coated, Corner Radius End, Centercutting, Series SM5F
Item #: 31215254
Brand: Supermill
Model #: SM5F125S-010
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1250 |
| Mill Diameter (Inch) | 1/8 |
| Length of Cut (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.0100 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| End Type | Corner Radius |
| Helix Angle | 45 |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Material Grade | Micrograin |
| Series | SM5F |
| Single Or Double End | Single |
| Manufacturers Catalog Number | SM5F |
| Coating/Finish | AlCrN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2500 |
