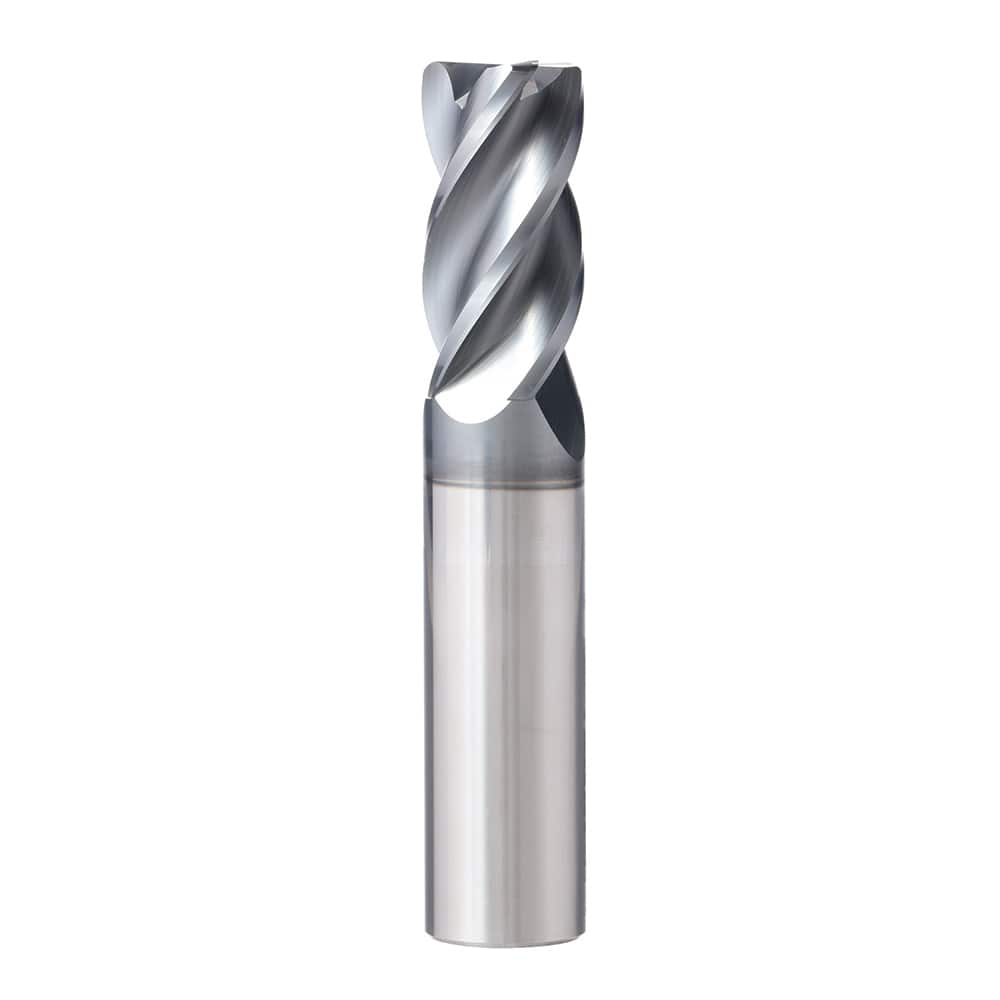

Supermill - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1/8 ; Mill Diameter (Decimal Inch): 0.1250 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0100 ; Number of Flutes: 4 ; Material: Solid Carbide
Item #: 31215056
Brand: Supermill
Model #: XPVS125-010
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1/8 ; Mill Diameter (Decimal Inch): 0.1250 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0100 ; Number of Flutes: 4 ; Material: Solid Carbide
| Mill Diameter (Inch) | 1/8 |
| Mill Diameter (Decimal Inch) | 0.1250 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0100 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | AlCrN |
| Length of Cut (Inch) | 1/2 |
| Length of Cut (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 1-1/2 |
| Helix Angle | 37 |
| Variable Index | Yes |
| Variable Helix | Yes |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Centercutting | Yes |
| Series/List | XPVS |
| Chipbreaker | No |
