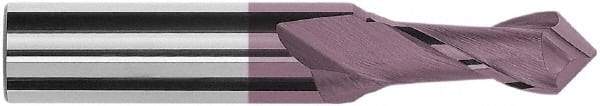

Magafor - 3/16" Diam, 3/8" LOC, 2 Flute, 90° Point Angle, Solid Carbide Drill Mill - Hard'X Finish, 2" OAL, 1/4" Shank Diam
Item #: 31206030
Brand: Magafor
Model #: 888090H0476
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on nonferrous materials, plastics and other tough-to-machine materials.
Hard X is proprietary coating with AlTiN. It has a high thermic stability and an excellent protection against heat and wear. Ideal for dry machining and high speed cutting in treated steels and dies. It has a high hardness of (3,700 Hv). Hard X is proprietary coating of Magafor.
| Product Specifications | |
|---|---|
| Material | Solid Carbide |
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Shank Diameter (Inch) | 1/4 |
| Length of Cut (Decimal Inch) | 0.3750 |
| Point Angle | 90 |
| Number of Flutes | 2 |
| Finish/Coating | Hard'X |
| Overall Length (Inch) | 2 |
| Material Grade | Micrograin |
| Helix Angle | 30 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (Decimal Inch) | -0.0000/-0.0012 |
