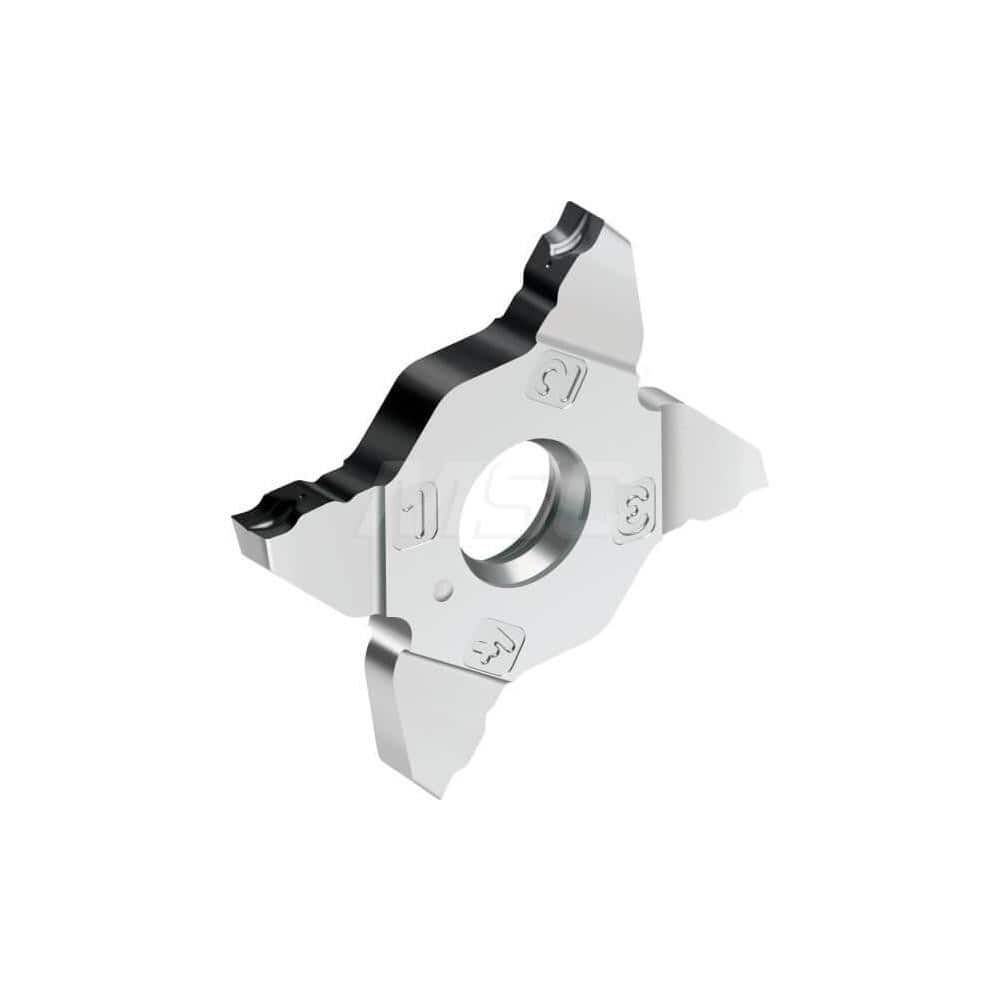

Grooving Insert: MX22CF5 WSM23S Al Finish, Neutral, 0.031″ Cutting Width, Series MX
Item #: 31197882
Brand: Walter
Model #: 7320486
Product Specifications
| Insert Style | MX22 |
| Insert Size Code | 2E080N01 |
| Manufacturer Grade | WSM23S |
| Cutting Width (Decimal Inch) | 0.0310 |
| Maximum Depth of Cut (mm) | 1.60 |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0040 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Parting |
| Series | MX |
| Coating Process | PVD |
| Rake Angle | 6.00 |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | MX22-2E080N01-CF5 WSM23S |
| Iso Code | MX22-2E080N01-CF5 WSM23S |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | MX22-2E080N01-CF5 WSM23S |
| Chip Breaker | CF5 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.0310 |
| Coating/Finish | Al |
