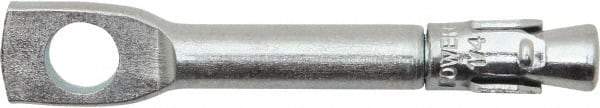

Powers Fasteners - 1/4" Diam, 1/4" Drill, 2" OAL, 1-5/8" Min Embedment Wedge Expansion Concrete Anchor - 1035 Case Hardened Steel, Zinc-Plated Finish, Tie Wire Head, Tie-Wire Drive, 1" Thread Length
Item #: 31188774
Brand: Powers Fasteners
Model #: 7409SD1-PWR
Exact Tooling IR#: 04
Features and Benefits
Wedge expansion concrete anchors are heavy-duty anchors used in cracked and uncracked concrete. They have expansion wedges that expand in concrete holes to increase holding power.
Case hardened carbon steel is less brittle than carbon steel and will not fracture under high stress.
Product Specifications | |
---|---|
Type | Wedge Expansion |
Diameter (Inch) | 1/4 |
Drill Size (Inch) | 1/4 |
Overall Length (Inch) | 2 |
Minimum Embedment (Inch) | 1-1/8 |
Material | Case Hardened Steel |
Material Grade | 1035 |
Finish/Coating | Zinc-Plated |
Head Type | Tie Wire |
Thread Size | 1/4-20 |
Drive Type | Tie-Wire |
Thread Length (Inch) | 1 |
For Use With | Normal Weight Concrete; Structural Lightweight Concrete; Grouted Concrete Masonry |
Bolt Size (Inch) | 1/4 |
System of Measurement | Inch |
