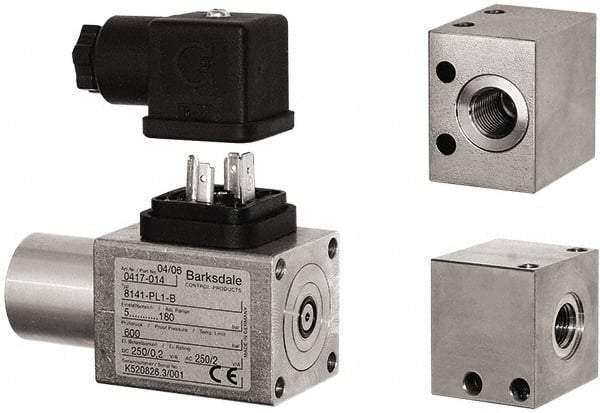

Barksdale - 800 to 8,700 psi Adjustable Range, 13,050 Max psi, Compact Pressure Switch - Unthreaded Manifold, DIN 43650A, SPDT Contact, 300SS Wetted Parts, 2% Repeatability
Item #: 31041478
Brand: Barksdale
Model #: 81F1TB
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Adjustable Range | 8700 psi |
| Minimum Adjustable Range | 800 psi |
| Type | Compact Pressure Switch |
| Maximum Pressure Setting | 13050 psi |
| Thread Size | Non-Threaded |
| Thread Type | Manifold |
| Electrical Connection | DIN 43650A |
| Amperage Rating | 3 Amp@250VAC; 5 Amp@125VAC; 3 Amp@30VDC |
| Contact Type | SPDT |
| Wetted Parts Material | 300SS |
| Repeatability | 2% |
| Contact Form | SPDT |
| Maximum Adjustable Range on Fall | 8700 |
| Maximum Adjustable Range on Rise | 8700 |
| Maximum Deadband | 1305.00 |
| Maximum Setpoint Deadband | 1305.00 |
| Maximum Temperature (C) | 75 |
| Maximum Temperature (F) | 167 |
| Minimum Adjustable Range on Fall | 800 |
| Minimum Adjustable Range on Rise | 800 |
| Minimum Deadband | 0 psi |
| Minimum Setpoint Deadband | 0.00 |
| Minimum Temperature (C) | -20 |
| Minimum Temperature (F) | -4 |
| Additional Information | 300SS; BUNA-N Seal |
