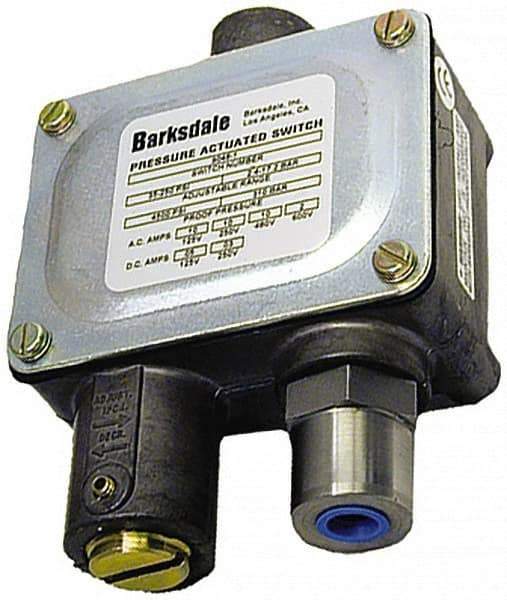

Barksdale - 700 to 10,000 psi Adjustable Range, 15,000 Max psi, Sealed Piston Pressure Switch - 1/4 NPT Female, Screw Terminals, SPDT Contact, 416SS Wetted Parts, 2% Repeatability
Item #: 31039324
Brand: Barksdale
Model #: 9048-6-CS
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Adjustable Range | 10000 psi |
| Minimum Adjustable Range | 700 psi |
| Type | Sealed Piston Pressure Switch |
| Maximum Pressure Setting | 15000 psi |
| Thread Size | 1/4 |
| Thread Type | NPT Female |
| Electrical Connection | Screw Terminals |
| Amperage Rating | 10 Amp@125VAC/250/480VAC; 0.03 Amp@250VDC |
| Contact Type | SPDT |
| Wetted Parts Material | 416SS |
| Repeatability | 2% |
| Contact Form | SPDT |
| Maximum Adjustable Range on Fall | 10000 |
| Maximum Adjustable Range on Rise | 10000 |
| Maximum Deadband | 550.00 |
| Maximum Setpoint Deadband | 550.00 |
| Maximum Temperature (C) | 74 |
| Maximum Temperature (F) | 165 |
| Minimum Adjustable Range on Fall | 700 |
| Minimum Adjustable Range on Rise | 700 |
| Minimum Deadband | 115 psi |
| Minimum Setpoint Deadband | 115.00 |
| Minimum Temperature (C) | -40 |
| Minimum Temperature (F) | -40 |
| Additional Information | 416SS; CSA Approved |
