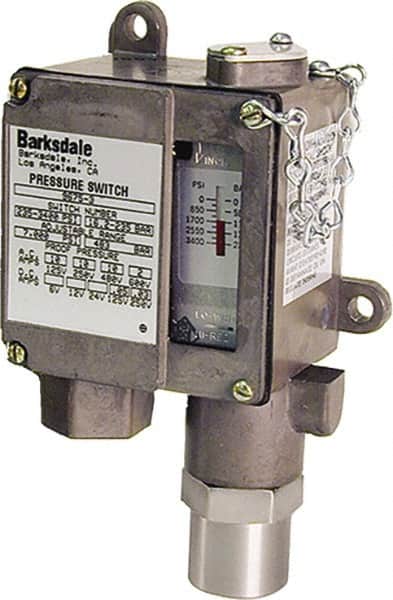

Barksdale - 75 to 540 psi Adjustable Range, 3,000 Max psi, Sealed Piston Pressure Switch - 1/4 NPT Female, Screw Terminals, SPDT Contact, 416SS Wetted Parts, 2% Repeatability
Item #: 31037740
Brand: Barksdale
Model #: D9675-1
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Adjustable Range | 540 psi |
| Minimum Adjustable Range | 75 psi |
| Type | Sealed Piston Pressure Switch |
| Maximum Pressure Setting | 3000 psi |
| Thread Size | 1/4 |
| Thread Type | NPT Female |
| Electrical Connection | Screw Terminals |
| Amperage Rating | 10 Amp@125/250/480VAC; 2 Amp@600VAC; 0.03 Amp@250VDC |
| Contact Type | SPDT |
| Wetted Parts Material | 416SS |
| Repeatability | 2% |
| Contact Form | SPDT |
| Maximum Adjustable Range on Fall | 540 |
| Maximum Adjustable Range on Rise | 540 |
| Maximum Deadband | 35.00 |
| Maximum Setpoint Deadband | 35.00 |
| Maximum Temperature (C) | 74 |
| Maximum Temperature (F) | 165 |
| Minimum Adjustable Range on Fall | 75 |
| Minimum Adjustable Range on Rise | 75 |
| Minimum Deadband | 10 psi |
| Minimum Setpoint Deadband | 10.00 |
| Minimum Temperature (C) | -29 |
| Minimum Temperature (F) | -20 |
| Additional Information | 416SS |
