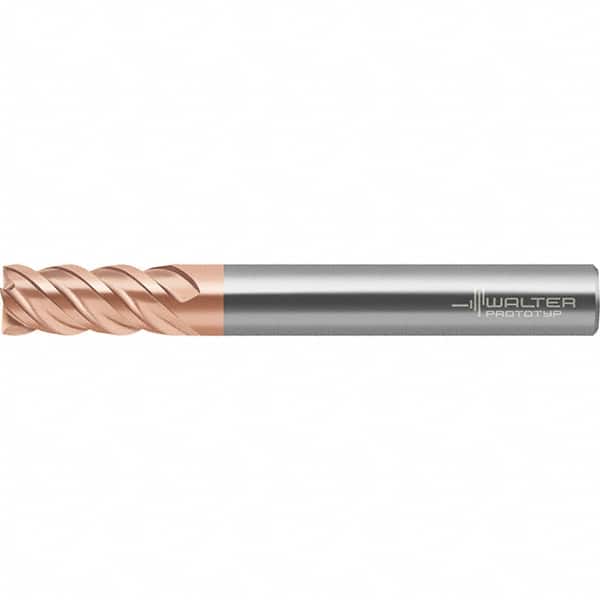

Walter-Prototyp - 4mm, 11mm LOC, 6mm Shank Diam, 57mm OAL, 3 Flute, Solid Carbide Square End Mill - TiAlSiN Finish, Spiral Flute, 50° Helix, Right Hand Cut, Right Hand Flute, Series MC388
Item #: 31008683
Brand: Walter-Prototyp
Model #: 7255011
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Silicon Nitride (TiAlSiN) is a high-performance coating designed for high heat and extreme cutting tool applications. It provides an excellent combination of heat and wear resistance.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 4.00 |
| Mill Diameter (Decimal Inch) | 0.1570 |
| Number of Flutes | 3 |
| Length of Cut (mm) | 11.00 |
| Material | Solid Carbide |
| Finish/Coating | TiAlSiN |
| Shank Diameter (mm) | 6.00 |
| Overall Length (mm) | 57.00 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 50 |
| Flute Type | Spiral |
| Length Type | Regular |
| Manufacturer Grade | WB10TG |
| Series/List | MC388 |
