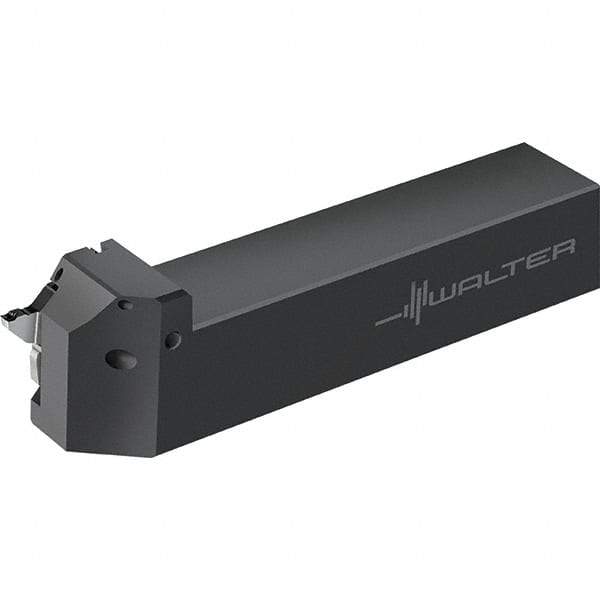

Walter - G3011, External, Left Hand, 6mm Max Depth of Cut, 1 to 3.25mm Groove Width, Indexable Grooving Tool Holder - MX22 Insert Compatibility, 12mm Shank Height, 12mm Shank Width, 120mm OAL, Through Coolant
Item #: 31007099
Brand: Walter
Model #: 7338051
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 6.00 |
| Minimum Groove Width (Decimal Inch) | 0.0390 |
| Minimum Groove Width (mm) | 1.00 |
| Maximum Groove Width (mm) | 3.25 |
| Overall Length (mm) | 120.00 |
| Toolholder Style | G3011 |
| Insert Compatibility | MX22 |
| Shank Height (mm) | 12.00 |
| Shank Width/Diameter (mm) | 12.00 |
| Series | G3011 |
| Through Coolant | Through Coolant |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
| Insert Seat Size | M22 |
| Manufacturers Catalog Number | G3011-1212L-MX22-2-P |
| Toolholder Material | Steel |
