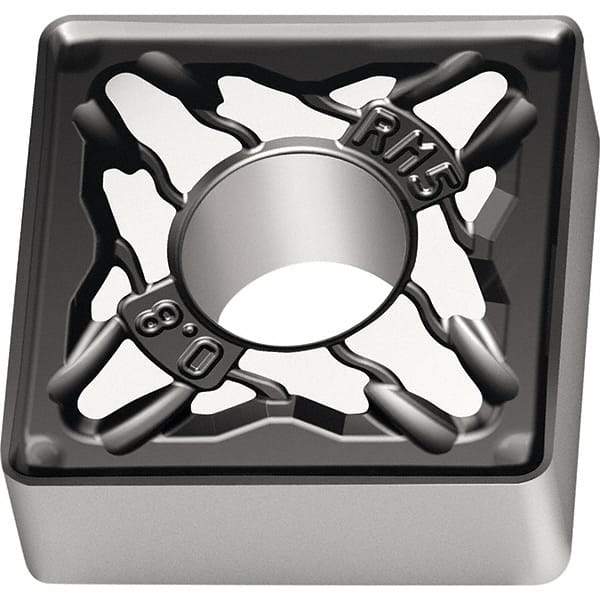

Walter - SNMG643 RM5 Grade WMP20S Carbide Turning Insert - TiCN/Al2O3/TiCN Finish, 90° Square, 3/4" Inscr Circle, 1/4" Thick, 0.047" Corner Radius
Item #: 31004732
Brand: Walter
Model #: 7251141
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Insert Size | 643 |
| Material | Carbide |
| Length (Inch) | 3/4 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Manufacturer's Grade | WMP20S |
| Coating | TiCN/Al2O3/TiCN |
| Chip Breaker | RM5 |
| Insert Length (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 0.7500 |
| Hole Diameter (Decimal Inch) | 0.3120 |
| ISO Number | SNMG190612-RM5 WMP20S |
| Coating Process | CVD |
| Manufacturers Catalog Number | 7251141 |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | SNMG |
| Maximum Depth of Cut (Decimal Inch) | 0.7500 |
| Cutting Width (mm) | 19.05 |
| Shape | Square |
