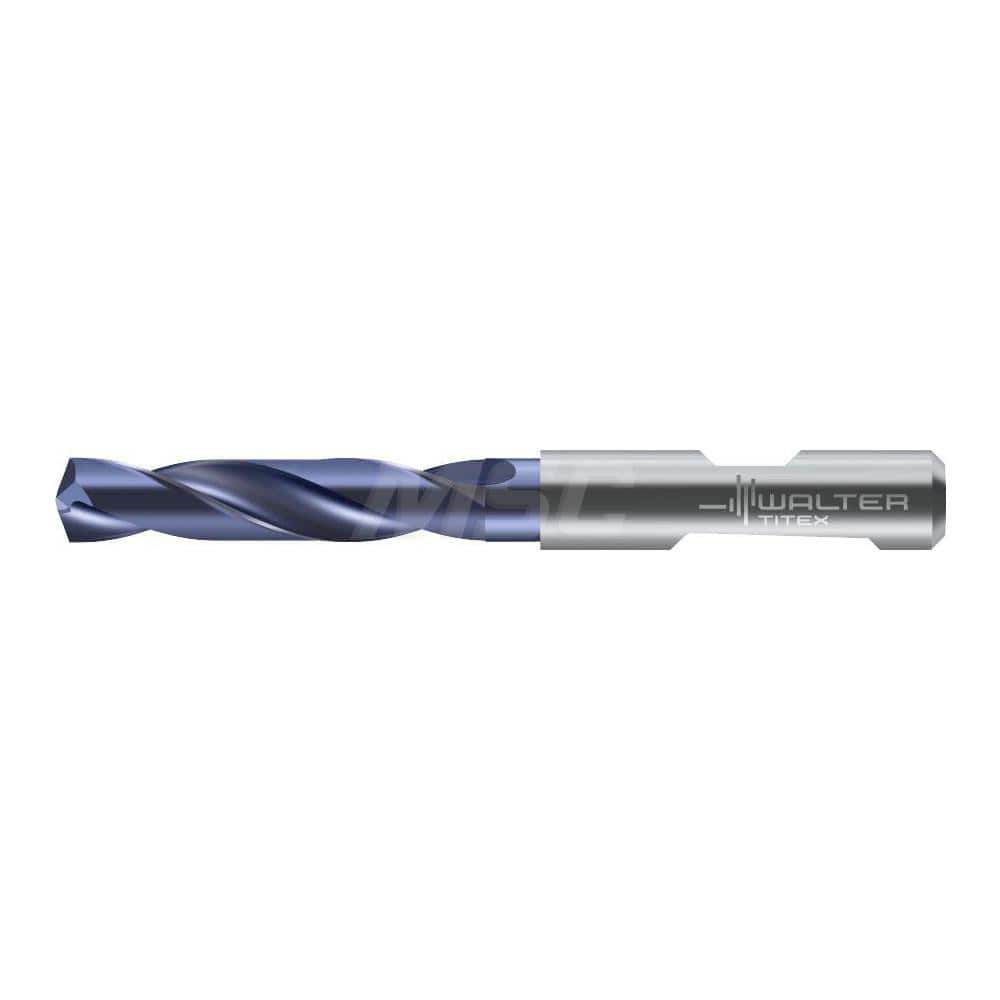

Screw Machine Length Drill Bit: 0.5276″ Dia, 140 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical with Weldon Flat Shank, Series DC150-03-D0
Item #: 31002009
Brand: Walter-Titex
Model #: 7287701
Product Specifications
| Drill Bit Size (mm) | 13.40 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 140 |
| Flute Type | Spiral |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical with Weldon Flat |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Drill Bit Size (Decimal Inch) | 0.5276 |
| Drill Tip Finish/Coating | TiAlN |
| Overall Length (mm) | 107.00 |
| Overall Length (Decimal Inch) | 4.2126 |
| Shank Diameter (mm) | 14.00 |
| Series | DC150-03-D0 |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (mm) | 43.00 |
| Shank Length (Decimal Inch) | 1.7700 |
| Shank Length (mm) | 45.00 |
| Drill Point Length (mm) | 2.44 |
| Drill Point Length (Decimal Inch) | 0.0960 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | Universal |
| Drill Bit Diameter Tolerance | m7 |
| Standards | ISO; DIN |
| Flute Length (mm) | 60.00 |
| Drill Bit Size Range (Decimal Inch) | 0.5000 to 0.6000 |
| Drill Bit Size Range (mm) | 11.00 to 13.50 |
| Material Grade | WJ30RE |
