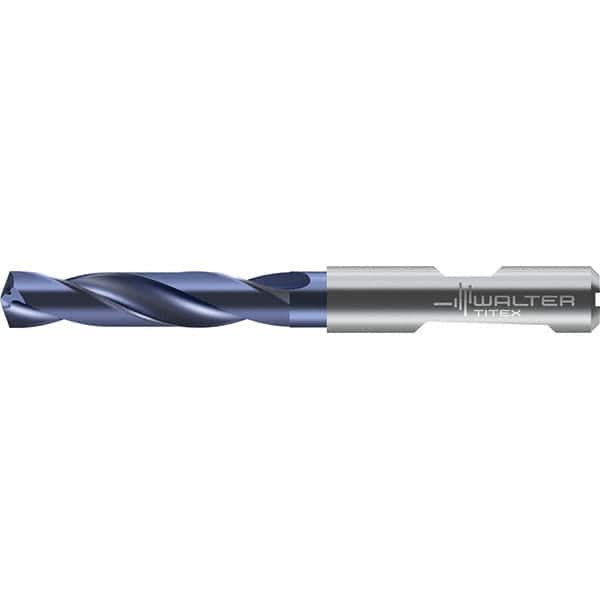

Walter-Titex - 9mm 140° Solid Carbide Screw Machine Drill Bit - Right Hand Cut, 47mm Flute Length, 89mm OAL, Straight Shank with Weldon Flat, Through Coolant
Item #: 31000870
Brand: Walter-Titex
Model #: 7287743
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Spiral flute reamers are used in blind and through-hole operations. They are used to bridge interrupted cuts.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.3543 |
| Drill Bit Size (mm) | 9.00 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Shank Type | Straight w/Weldon Flat |
| Flute Length (mm) | 47.00 |
| Thickness (Decimal Inch) | 0.2500 |
| Overall Length (mm) | 89.00 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Flute Length x Diameter Ratio | 3xD |
| Shank Diameter (mm) | 10.00 |
| Flute Type | Spiral |
| Maximum Drilling Depth (mm) | 35.00 |
| Number of Flutes | 2 |
| Drill Point Length (mm) | 1.64 |
| Drill Point Length (Decimal Inch) | 0.0640 |
| Drill Tip Finish/Coating | TiAlN |
| Through Coolant | Yes |
| Material Grade | WJ30RE |
| Series/List | DC150-03-D1 |
