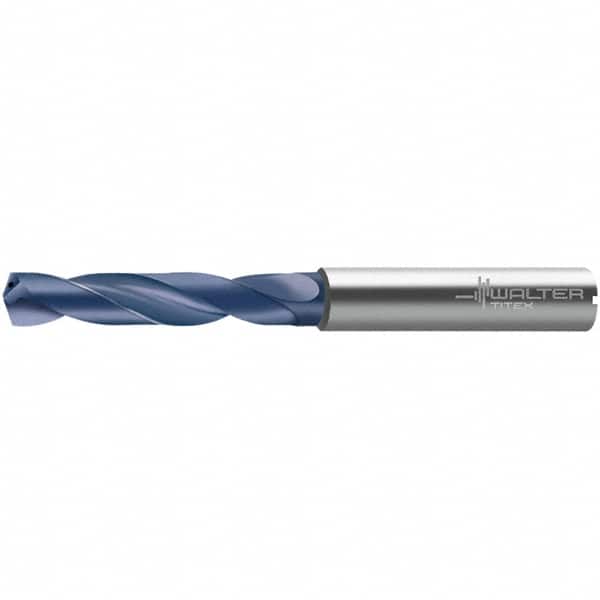

Walter-Titex - 13.5mm 140° Solid Carbide Screw Machine Drill Bit - Right Hand Cut, 60mm Flute Length, 107mm OAL, Through Coolant
Item #: 30984579
Brand: Walter-Titex
Model #: 6968861
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.5315 |
| Drill Bit Size (mm) | 13.50 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Flute Length (mm) | 60.00 |
| Flute Length (Decimal Inch) | 2.3620 |
| Overall Length (mm) | 107.00 |
| Overall Length (Decimal Inch) | 4.2130 |
| Flute Length x Diameter Ratio | 3xD |
| Shank Diameter (mm) | 14.00 |
| Shank Diameter (Decimal Inch) | 0.5510 |
| Maximum Drilling Depth (mm) | 43.00 |
| Maximum Drilling Depth (Decimal Inch) | 1.6930 |
| Number of Flutes | 2 |
| Drill Point Length (mm) | 2.46 |
| Drill Point Length (Decimal Inch) | 0.0970 |
| Drill Tip Finish/Coating | TiNAl |
| Through Coolant | Yes |
| Material Grade | Carbide |
| Series/List | DC150-03-A1 |
