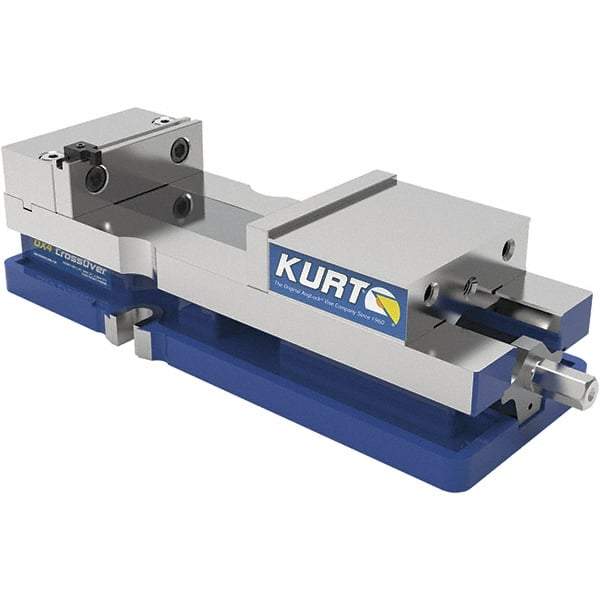

Kurt - 4" Jaw Width, 6-1/2" Jaw Opening Capacity, Horizontal Stationary Machine Vise - Reverse Manual Operation, 60 Lb Capacity, 1 Station, 14.56" Long x 84.47mm High x 1-15/64" Deep, 1.235" Jaw Height, 7,500 Lb Max Clamp Force, Ductile Iron
Item #: 30929426
Brand: Kurt
Model #: DX4R
Exact Tooling IR#: 04
Features and Benefits
Horizontal vises slide from side to side during milling operations.
Stationary vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 4 |
| Jaw Opening Capacity (Inch) | 6-1/2 |
| Throat Depth (Inch) | 1-15/64 |
| Orientation Type | Horizontal |
| Number of Stations | 1 |
| Base Motion Type | Stationary |
| Operation Type | Reverse Manual |
| Jaw Height (Decimal Inch) | 1.2350 |
| Base Length (Inch) | 12-1/2 |
| Base Length (Decimal Inch) | 12.5000 |
| Jaw Material | Steel |
| Precision | Yes |
| Overall Length (Decimal Inch) | 14.5600 |
| Base Width (Decimal Inch) | 4.9620 |
| Vise Material | Ductile Iron |
| Load Capacity (Lb.) | 60.00 |
| Base Height (Inch) | 2-1/4 |
| Maximum Clamping Force (Ft/Lb) | 7500.00 |
| Product Line | Machine Tool Accessories |
| Overall Height (mm) | 84.47 |
| Overall Height (Decimal Inch) | 3.3650 |
| Includes | Handle |
