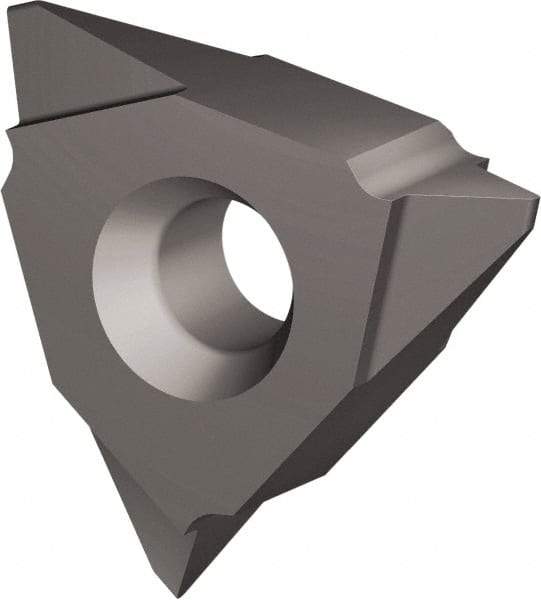

Vargus - 5VIL27 ABUT Grade VTX Internal On Edge Threading Insert - TiAlN Finish, 2-1/2" Internal TPI, 5/8" Inscribed Circle, Left Hand Cut
Item #: 30924005
Brand: Vargus
Model #: 62267
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 5VIL |
| Insert Size | 27 |
| Thread Type | Internal |
| Cutting Direction | Left Hand |
| Thread Standard | ABUT |
| Manufacturer's Grade | VTX |
| Internal Threads Per Inch | 2.5 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (Decimal Inch) | 0.4055 |
| Rake | Positive |
| Material | Carbide |
| Coating | TiAlN |
| Hole Diameter (Decimal Inch) | 0.2630 |
| Material Grade | Micrograin |
| Coating Process | PVD |
| Rake Angle | 10 |
