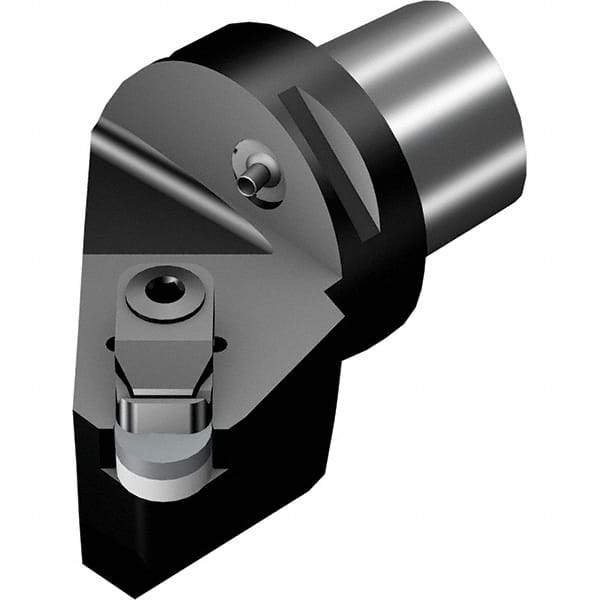

Sandvik Coromant - Right Hand Cut, Size C5, RNGN 09 03 00 Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 35mm Ctr to Cutting Edge, Through Coolant, Series T-Max
Item #: 30889257
Brand: Sandvik Coromant
Model #: 7439598
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | T-Max |
| Cutting Direction | Right Hand |
| Insert Style | RNGN 09 03 00 |
| Center to Cutting Edge (mm) | 35.00 |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Through Coolant | Yes |
| Maximum Hole Depth (mm) | 60.00 |
| Maximum Hole Depth (Decimal Inch) | 2.3622 |
| Neck Diameter (mm) | 50.00 |
| Neck Diameter (Decimal Inch) | 1.9685 |
| Complete Insert Compatibility | RNGN 09 03 00 |
